The Startrite TA175 & TA275 are the two most popular tilt arbour machines produced by Startrite in the UK. While the TA275 has a larger motor, and can take a slightly larger blade than the TA175, these saws mostly share the same spares.
TA175 & TA275 Spares Categories
-

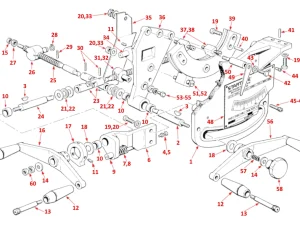

APRON – BLADE HEIGHT & TILT MECHANISM - TA 175 / 275 (59)
-

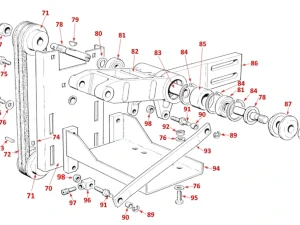

SAW SPINDLE ARM & MOTOR PLATFORM - TA 175 / 275 (30)
-

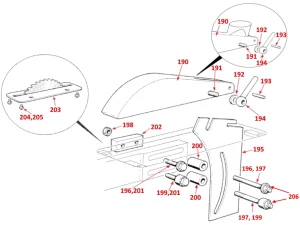

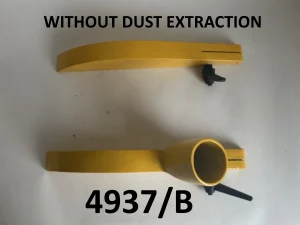

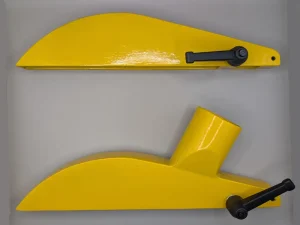

SAW GUARD & RIVING KNIFE - TA 175 / 275 (20)
-
RIP FENCE - TA 175 / 275 (28)
-
PROTRACTOR - TA 175 / 275 (23)
-
TABLE & SLIDING SUB-TABLE - TA 175 / 275 (16)
-
SLIDING TABLE & MOUNTING ASSEMBLY (DS MODELS) - TA 175 / 275 (18)
-
FENCE BAR ASSEMBLY (DS MODELS) - TA 175 / 275 (16)
-

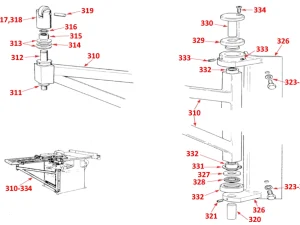

SUPPORT ARM ASSEMBLY (DS MODELS) - TA 175 / 275 (25)
TA175 & TA275 Top Sellers
-
-
-
APRON - BLADE HEIGHT & TILT MECHANISM - TA145/TA165, APRON – BLADE HEIGHT & TILT MECHANISM - TA 175 / 275, APRON – BLADE HEIGHT & TILT MECHANISM - TA 255, APRON – BLADE HEIGHT & TILT MECHANISM - TA 300 PS, APRON – BLADE HEIGHT & TILT MECHANISM - TA1250, GEARBOX INPUT & GEARSHIFT ASSEMBLY - V900, VARIABLE SPEED CONTROL
£73.04 Add to basket
Circular Saw Blades for the TA175 & TA275
We stock high quality, Swedish circular saws blades for the TA175 & TA275. Both Rip Cut and Cross Cut blades available.

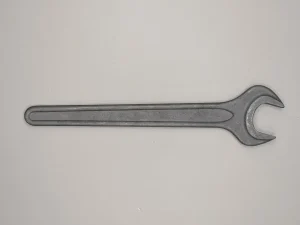

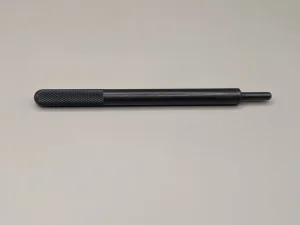

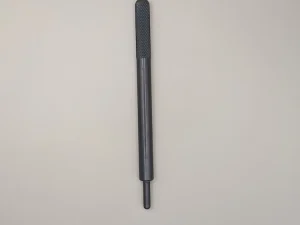

We also stock the Tommy Bar tool & Spanner for blade changes.
-
-
CIRCULAR SAW BLADES FOR STARTRITE TILT ARBOUR (TA) TABLE SAWS., SAW GUARD & RIVING KNIFE - TA 255
Price range: £97.95 through £102.95 Select options This product has multiple variants. The options may be chosen on the product page -
CIRCULAR SAW BLADES FOR STARTRITE TILT ARBOUR (TA) TABLE SAWS.
Price range: £116.96 through £117.98 Select options This product has multiple variants. The options may be chosen on the product page -

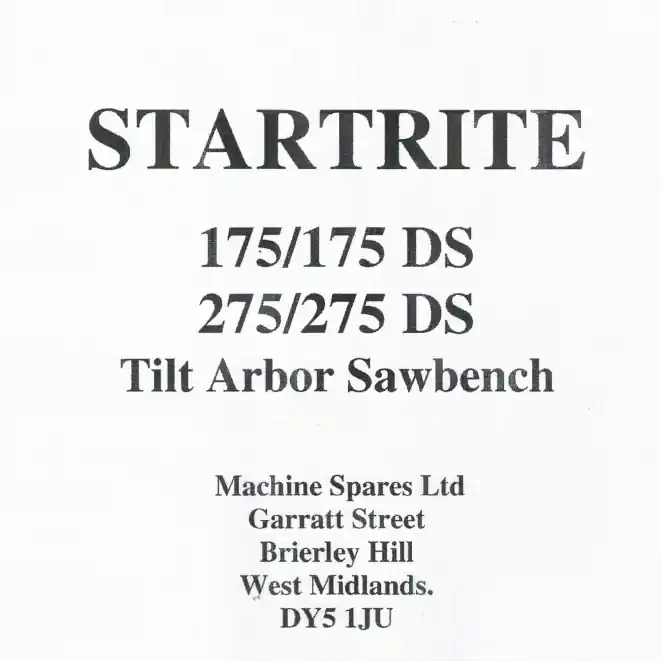

Manuals
The Startrite TA175 & TA275 share mostly common parts, and have a shared manual which includes:
- Spare Parts List
- Machine Specifications
- Maintenance Practices
Maintenance Parts for Startrite TA175 & TA275
Typically the most common parts to replace for maintenance on the TA175 & TA275 tilt arbour saws is as follows:

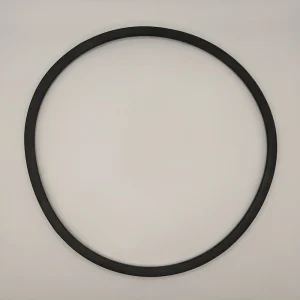

Drive Belt (2 Per Machine)
Over time, drive belts degrade and stretch. This can lead to a loss of power, increased vibrations which can damage components, and increased noise.
The TA175 & TA275 saw benches both feature a dual belt drive. It’s important to replace both belts at the same time. We sell matched pairs of these belts, ensuring they are exactly the same. If your belts aren’t matched, one belt may be taking more of the load from the motor.

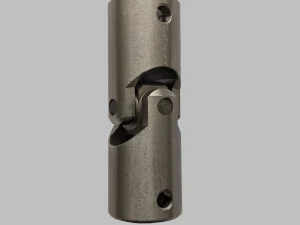

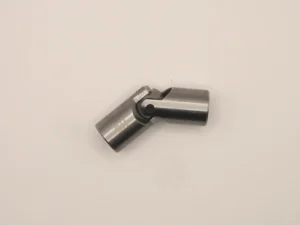

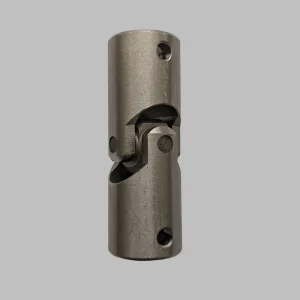

Universal Joint
Universal joints allow tilt arbour saws to maintain motor power when the blade is tilted. These can fail, but are simple to replace.
A saw that has stiff tilting movement, or any play in the tilt mechanism may indicate that the universal joint is on its way out and needs replacing.

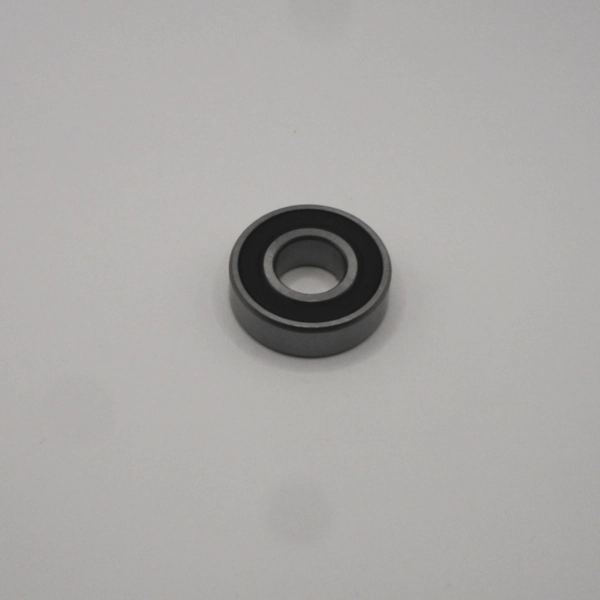

Spindle Bearings
Spindle bearings on a tilt arbour saw are under a huge amount of load, and can wear out over time.
Unfortunately, replacing the spindle bearings means complete disassembly of the machine.
We do offer a saw recondition service and can replace your spindle bearings as part of that. Contact us for more information.
