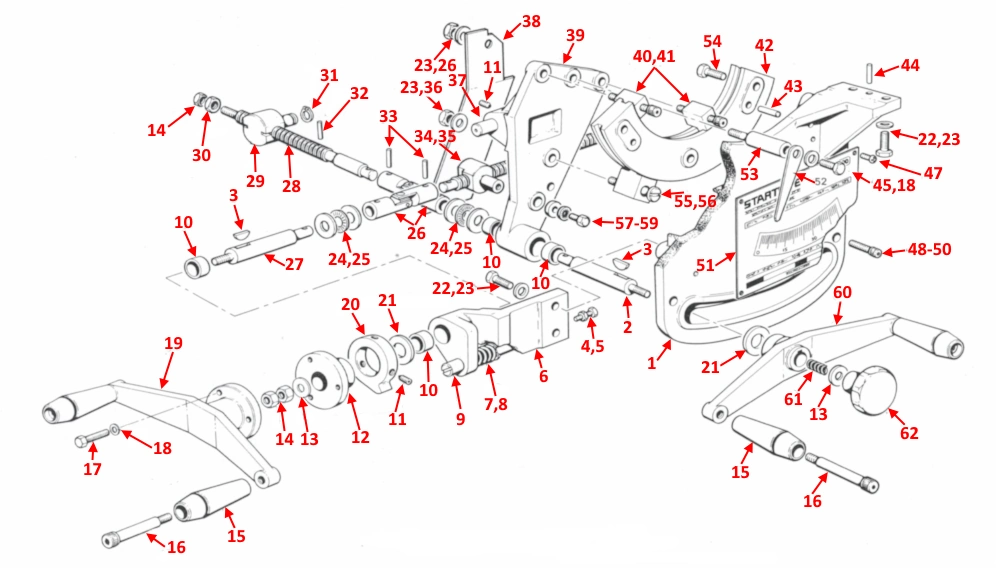

APRON – BLADE HEIGHT & TILT MECHANISM - TA 300 PS
Startrite Tilt Arbour TA300 Blade Height & Tilt Mechanism Spares.
Please Note: The Universal Joint and Feed Screw do not come pre-drilled. This allows you to ensure the hole is positioned accurately. To align the holes, push the joint and feed screw together, then drill through both parts. This can be done using a standard battery-powered hand drill and a 3/16″ metal drill bit.
| Label | Product Code | NAME (CLICK FOR DETAILS) | Price - Exc VAT | Stock | Buy | |
|---|---|---|---|---|---|---|
| 01 | 1736 | APRON CASTING | ||||
| 02 | 1788/MET | SHAFT | £68.75 | In stock | ||
| 03 | BO6460 | KEY (WOODRUFF) | £7.53 | In stock | ||
| 04 | BO5547 | HEXAGON HEAD SCREW | £1.86 | In stock | ||
| 05 | BO5713 | FULL NUT | £1.42 | In stock | ||
| 06 | 2069 | TILT SHAFT BRACKET (METRIC) COMES WITH BUSH FITTED. | £188.62 | In stock | ||
| 07 | 2072 | COMPRESSION SPRING | £20.16 | In stock | ||
| 08 | BO6018 | EXTERNAL CIRCLIP | £2.04 | In stock | ||
| 09 | 2070 | POSITIVE STOP PIN | £18.48 | In stock | ||
| 10 | BO2326 | BUSH | £8.20 | In stock | ||
| 11 | BO5194 | GRUB SCREW | £1.15 | In stock | ||
| 12 | 7403 | COLLAR | ||||
| 13 | BO5919 | WASHER | £1.15 | In stock | ||
| 14 | BO5754 | HALF LOCKNUT | £1.79 | In stock | ||
| 15 | BO2553 | HANDLE (METRIC) | £23.91 | In stock | ||
| 16 | BO5485 | SHOULDER SCREW (METRIC) | £6.85 | In stock | ||
| 17 | BO5555 | HEX SET SCREW | £2.04 | In stock | ||
| 18 | BO5915 | WASHER | £0.91 | In stock | ||
| 19 | 7247/1 | HANDLE | ||||
| 20 | 2071/A | STOP COLLAR | £52.96 | Only 1 left in stock | ||
| 21 | 1798 | SPECIAL WASHER | £6.12 | In stock | ||
| 22 | BO5563 | HEXAGON HEAD SCREW | £1.81 | In stock | ||
| 23 | BO5917 | WASHER | £1.05 | In stock | ||
| 24 | 1795 | THRUST WASHER | £21.30 | In stock | ||
| 25 | BO2066 | THRUST RACE BEARING | £19.97 | In stock | ||
| 26 | SM212 | UNIVERSAL JOINT | £73.04 | In stock | ||
| 27 | 1790/MET | SHAFT - METRIC | £88.61 | In stock | ||
| 28 | 4542 | FEED SCREW - with 2 END NUTS | £90.25 | In stock | ||
| 29 | 4541 | TRUNNION NUT - LEFT HAND | £92.25 | In stock | ||
| 30 | 5634 | SPECIAL NUT (IMPERIAL) | £16.12 | In stock | ||
| 31 | BO6017 | 'C' CLIP | £2.04 | In stock | ||
| 32 | BO5332 | MILLS PIN | £1.90 | In stock | ||
| 33 | BO5331 | MILLS PIN | £1.76 | In stock | ||
| 33 | BO5353 | SEL LOC | £5.09 | In stock | ||
| 34 | 1791 | FEED SCREW | £77.92 | In stock | ||
| 35 | 5735 | TRUNNION NUT | £90.25 | In stock | ||
| 36 | BO5715 | FULL NUT | £1.81 | In stock | ||
| 37 | 1812/MET | PIVOT PIN | £13.60 | |||
| 38 | 5651 | DEFLECTOR PLATE | £20.38 | In stock | ||
| 39 | 1738/MET | TILT ARM (BUSHES FITTED) | £432.69 | In stock | ||
| 40 | 1777 | INTERNAL SHOE | £117.90 | |||
| 41 | BO5079 | CAP SCREW | £2.04 | In stock | ||
| 42 | 1737/A | SEGMENT CASTING | £288.25 | |||
| 43 | BO5891 | DOWEL | ||||
| 44 | BO5892 | DOWEL PINS | £3.01 | In stock | ||
| 45 | BO5552 | HEX HEAD SCREW | £1.91 | In stock | ||
| 47 | BO5410 | ROUND HEAD SCREW | ||||
| 48 | BO5060 | CAP SCREW | £3.13 | In stock | ||
| 49 | BO5730 | BINX NUT | ||||
| 50 | BO5913 | WASHER | £0.68 | In stock | ||
| 51 | 8089 | SERIAL / PROTRACTOR PLATE | £19.36 | |||
| 52 | 3338 | POINTER | £3.45 | |||
| 53 | 1793 | POINTER SUPPORT | £13.60 | |||
| 54 | BO5564 | HEX SCREW | £2.04 | In stock | ||
| 55 | 1776 | EXTERNAL SHOE | £142.82 | |||
| 56 | 1794 | ECCENTRIC SCREW | £28.87 | In stock | ||
| 57 | BO5546 | HEX SCREW | £1.60 | In stock | ||
| 58 | BO5942 | WASHER | £1.48 | In stock | ||
| 59 | 5736 | WASHER | £5.44 | In stock | ||
| 60 | 3339/A | 3 PART HANDLE for BLADE TILT (INC 12 & 13) | £87.00 | In stock | ||
| 61 | 1499 | SPRING | £11.16 | In stock | ||
| 62 | 5130 | HANDKNOB - RIGHT HAND THREAD | £29.99 | In stock |
