APRON – BLADE HEIGHT & TILT MECHANISM - TA1250

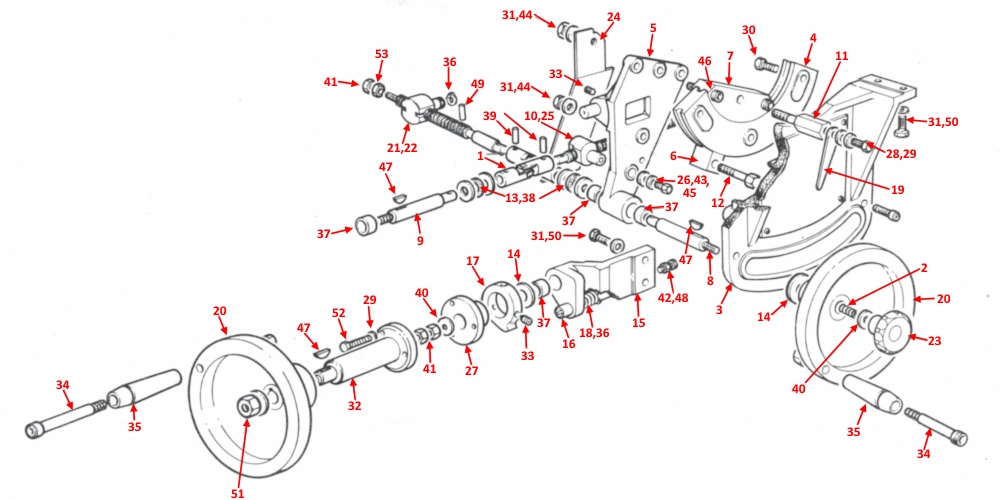

Startrite Tilt Arbour TA1250 Blade Height & Tilt Mechanism Spares.
Please Note: The Universal Joint and Feed Screw do not come pre-drilled. This allows you to ensure the hole is positioned accurately. To align the holes, push the joint and feed screw together, then drill through both parts. This can be done using a standard battery-powered hand drill and a 3/16″ metal drill bit.
| Label | Product Code | NAME (CLICK FOR DETAILS) | Price - Exc VAT | Stock | Buy | |
|---|---|---|---|---|---|---|
| 01 | SM212 | UNIVERSAL JOINT | £73.04 | In stock | ||
| 02 | 1499 | SPRING | £11.16 | In stock | ||
| 03 | 1736 | APRON CASTING | ||||
| 04 | 1737/B | SEGMENT CASTING (TA1250) | ||||
| 05 | 1738/MET | TILT ARM (BUSHES FITTED) | £432.69 | In stock | ||
| 06 | 1776 | EXTERNAL SHOE | £142.82 | |||
| 07 | 8369 | INTERNAL SHOE | ||||
| 08 | 1788/MET | SHAFT | £68.75 | In stock | ||
| 09 | 1790/MET | SHAFT - METRIC | £88.61 | In stock | ||
| 10 | 1791 | FEED SCREW | £77.92 | In stock | ||
| 11 | 8370 | POINTER SUPPORT | ||||
| 12 | 1794 | ECCENTRIC SCREW | £28.87 | In stock | ||
| 13 | 1795 | THRUST WASHER | £21.30 | In stock | ||
| 14 | 1798 | SPECIAL WASHER | £6.12 | In stock | ||
| 15 | 2069 | TILT SHAFT BRACKET (METRIC) COMES WITH BUSH FITTED. | £188.62 | In stock | ||
| 16 | 2070 | POSITIVE STOP PIN | £18.48 | In stock | ||
| 17 | 2071/A | STOP COLLAR | £52.96 | Only 1 left in stock | ||
| 18 | 2072 | COMPRESSION SPRING | £20.16 | In stock | ||
| 19 | 3338 | POINTER | £3.45 | |||
| 20 | 8639 | HANDWHEEL w/ INNER HANDLE | £77.53 | In stock | ||
| 21 | 4541 | TRUNNION NUT - LEFT HAND | £92.25 | In stock | ||
| 22 | 4542 | FEED SCREW - with 2 END NUTS | £90.25 | In stock | ||
| 23 | BO2533 | HANDWHEEL (old part no. 5130) -RIGHT HAND THREAD | £40.99 | In stock | ||
| 24 | 5651 | DEFLECTOR PLATE | £20.38 | In stock | ||
| 25 | 5735 | TRUNNION NUT | £90.25 | In stock | ||
| 26 | 5736 | WASHER | £5.44 | In stock | ||
| 27 | 7403 | COLLAR | ||||
| 28 | BO5552 | HEX HEAD SCREW | £1.91 | In stock | ||
| 29 | BO5915 | WASHER | £0.91 | In stock | ||
| 30 | BO5074 | CAP SCREW | £1.82 | In stock | ||
| 31 | BO5917 | WASHER | £1.05 | In stock | ||
| 32 | SM1816 | EXTENSION (WELDED ASSEMBLY) | ||||
| 33 | BO5194 | GRUB SCREW | £1.15 | In stock | ||
| 34 | BO5485 | SHOULDER SCREW (METRIC) | £6.85 | In stock | ||
| 35 | BO2553 | HANDLE (METRIC) | £23.91 | In stock | ||
| 36 | BO6018 | EXTERNAL CIRCLIP | £2.04 | In stock | ||
| 37 | BO2326 | BUSH | £8.20 | In stock | ||
| 38 | BO2066 | THRUST RACE BEARING | £19.97 | In stock | ||
| 39 | BO5331 | MILLS PIN | £1.76 | In stock | ||
| 40 | BO5919 | WASHER | £1.15 | In stock | ||
| 41 | BO5754 | HALF LOCKNUT | £1.79 | In stock | ||
| 42 | BO5713 | FULL NUT | £1.42 | In stock | ||
| 43 | BO5592 | HEX SCREW | £1.42 | In stock | ||
| 44 | BO5715 | FULL NUT | £1.81 | In stock | ||
| 45 | BO5942 | WASHER | £1.48 | In stock | ||
| 46 | BO5079 | CAP SCREW | £2.04 | In stock | ||
| 47 | BO6460 | KEY (WOODRUFF) | £7.53 | In stock | ||
| 48 | BO5547 | HEXAGON HEAD SCREW | £1.86 | In stock | ||
| 49 | BO5332 | MILLS PIN | £1.90 | In stock | ||
| 50 | BO5563 | HEXAGON HEAD SCREW | £1.81 | In stock | ||
| 51 | BO5732 | BINX NUT | £1.73 | In stock | ||
| 52 | BO5555 | HEX SET SCREW | £2.04 | In stock | ||
| 53 | 5634 | SPECIAL NUT (IMPERIAL) | £16.12 | In stock |
