CONTROL BOX - MARK 1 (MOST COMMON)

Control Box for Startrite V, T, R & S model vertical bandsaws fitted with a hydraulic sliding table.

CHECK YOU HAVE A MARK 1 CONTROL BOX / VALVE. – The mark 1 control box has a built in pressure gauge, the mark 2 has a separate pressure gauge.

FOR MK2 CONTROL BOX CLICK HERE

While some parts for this Startrite Control box and valve are not being held in stock, most of them can be made as required from the original Startrite specification. If you require a part out of stock follow the contact us button & get in touch.

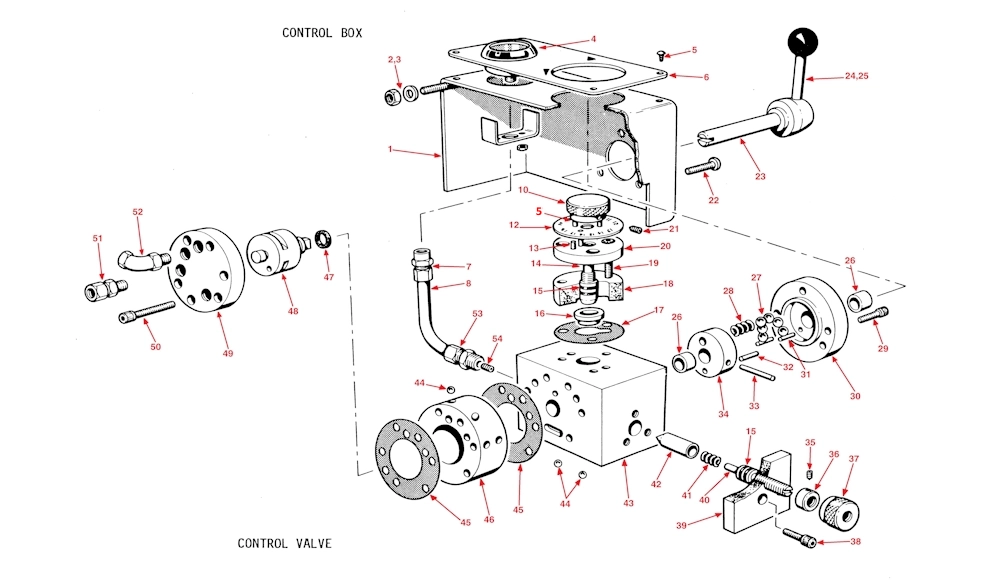

Startrite R Series control box & valve parts diagram
    LabelProduct CodeNAME (CLICK FOR DETAILS)Price - Exc VATStockBuy
    *01-49SM473CONTROL BOX ASSEMBLY

    *10-49SM463CONTROL VALVE

    01SM472CONTROL BOX CASING

    02BO5703FULL NUT£2.84

    In stock

    03BO5917WASHER£0.86

    In stock

    04BO2454PRESSURE GAUGE 160 PSI PANEL MOUNTED£74.00

    In stock

    05BO5871HAMMER DRIVE SCREW£1.72

    In stock

    063548INSTRUCTION PLATE

    07BO2413FEMALE STUD COUPLING

    08BO6382NYLON TUBE 3/16 O/DIA x 24 INCHES£2.80

    In stock

    103203CONTROL KNOB

    123195FEED CONTROL DIAL£48.38

    In stock

    13BO5368SPRING LOCK PIN

    143533VALVE SPINDLE£75.00

    In stock

    15BO2262O RING£0.59

    In stock

    163534VALVE INSERT

    173536GASKET£5.00

    In stock

    183527VALVE HOUSING£75.00

    In stock

    19BO5012CAP SCREW£1.78

    In stock

    203528TOP CAP£30.10

    In stock

    21BO5155GRUB SCREW£1.49

    In stock

    22BO5450GRUB SCREW

    233529CONTROL SPINDLE

    242917FEED HANDLE£16.83

    In stock

    25BO2539KNOB£11.23

    In stock

    26BO2304BUSH£4.57

    In stock

    27BO2101STEEL BALL£1.50

    28BO2200SPRING£1.17

    In stock

    29BO5008CAP SCREW£1.50

    In stock

    303523FRONT CAP

    31BO5369SEL LOCK£0.74

    In stock

    32BO5332MILLS PIN£1.56

    In stock

    33BO5375SEL LOC£3.08

    In stock

    343530COLLAR

    35BO5159GRUB SCREW

    363606LOCKING COLLAR

    373607THUMB NUT

    38BO5002CAP SCREW£1.47

    In stock

    393704REGULATOR BLOCK

    403532REGULATOR SPINDLE

    41BO2197SPRING£6.36

    In stock

    423535REGULATOR PISTON

    433522VALVE BODY

    44BO2100STEEL BALL£1.74

    In stock

    453367GASKET£5.00

    In stock

    463524SPOOL HOUSING

    47BO2264O RING£1.25

    In stock

    483526SPOOL

    493525REAR CAP

    50BO5014CAP SCREW

    51BO2412MALE STUD COUPLING£13.49

    In stock

    52BO2423MALE ELBOW£18.84

    In stock

    53BO2414MALE STUD£2.75

    In stock

    54BO5163GRUB SCREW£1.21

    In stock
