TOP BRACKET & GUIDE POST - V900

This listing for the Startrite V900 Top Bracket also includes the guide post, which is one unit on this bandsaw.
To see spares for the Startrite V900 Blade Guides Click Here.

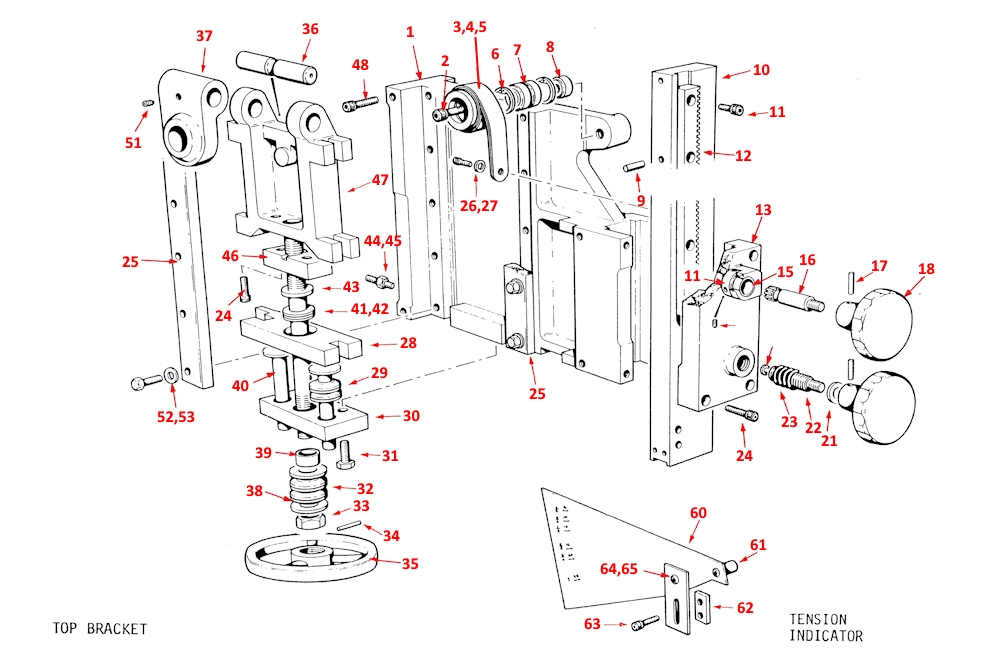

Parts Diagram for a Startrite v900 Top Bracket
    LabelSKUNAME (CLICK TITLE OR PRODUCT CODE FOR MORE INFO)PriceStockBuy
    *60-65SM365TENSION INDICATOR - V500 / V900 / 316£94.35

    In stock

    012882TOP BRACKET BODY

    02BO5030CAP SCREW£2.19

    In stock

    032226SPRING LOCATING DRUM£2.15

    In stock

    04BO2189TENSATOR SPRING£74.78

    In stock

    05BO2190TENSATOR SPRING£74.78

    In stock

    06BO6030INTERNAL CIRCLIP£1.33

    In stock

    07BO2003BEARING£6.77

    In stock

    082227SPACER£8.47

    In stock

    09BO5331MILLS PIN£1.45

    In stock

    102923GUIDE POST

    11BO5008CAP SCREW£1.50

    In stock

    122928RACK£195.17

    In stock

    132884RETAINING BRACKET£162.60

    In stock

    142958COLLAR£12.11

    In stock

    15BO2304BUSH£4.57

    In stock

    162934PINION£80.60

    In stock

    17BO5332MILLS PIN£1.56

    In stock

    185130HANDKNOB - RIGHT HAND THREAD£24.78

    In stock

    19BO5151GRUB SCREW£1.54

    In stock

    202924LOCKING PAD£8.55

    In stock

    21BO5919WASHER£0.94

    In stock

    222935LOCKING SCREW£47.14

    In stock

    23BO2208FLEXO SPRING£5.54

    In stock

    24BO5021CAP SCREW£1.17

    In stock

    252930GUIDE PLATE£42.62

    In stock

    26BO5001CAP SCREW£1.18

    In stock

    27BO5911WASHER£0.95

    In stock

    282926TENSION PLATE£116.19

    In stock

    29BO2242DISC SPRING£3.00

    In stock

    302929RETAINING PLATE£140.82

    In stock

    31BO5527HEX HEAD SCREW£1.81

    32BO2240DISC SPRING£2.15

    In stock

    33BO5746LOCKNUT£2.75

    In stock

    34BO5359SEL LOC PIN£1.40

    In stock

    3597702 SPOKE WHEEL£39.78

    In stock

    362881PIVOT PIN£40.51

    In stock

    372880TILT BRACKET£186.71

    In stock

    38BO5922WASHER£0.78

    In stock

    39BO2300BUSH£7.31

    In stock

    404234SPRING PIVOT PIN£45.33

    In stock

    41BO2068THRUST WASHER£4.57

    In stock

    42BO2067THRUST RACE£9.56

    In stock

    432927TENSION SCREW£155.88

    In stock

    44BO5169GRUB SCREW£3.20

    In stock

    45BO5702FULL NUT£1.33

    In stock

    462931NUT£166.53

    In stock

    472883TENSION BRACKET£462.89

    Only 1 left in stock

    48BO5026CAP SCREW£2.48

    In stock

    51BO5165GRUB SCREW£2.77

    In stock

    52BO5510HEX SCREW£1.69

    In stock

    53BO5915WASHER£0.74

    In stock

    604233/ATENSION INDICATOR with METRIC£66.53

    In stock

    612941REGISTER PIN£5.65

    In stock

    622940CLAMPING BAR

    63BO5003CAP SCREW£1.48

    In stock

    642939PIVOT PIN£24.65

    In stock

    652942PIVOT PLATE£16.03

    Only 1 left in stock
