INTERNAL VIEW (REAR) – IDEAL BSO25 BLADE WELDER

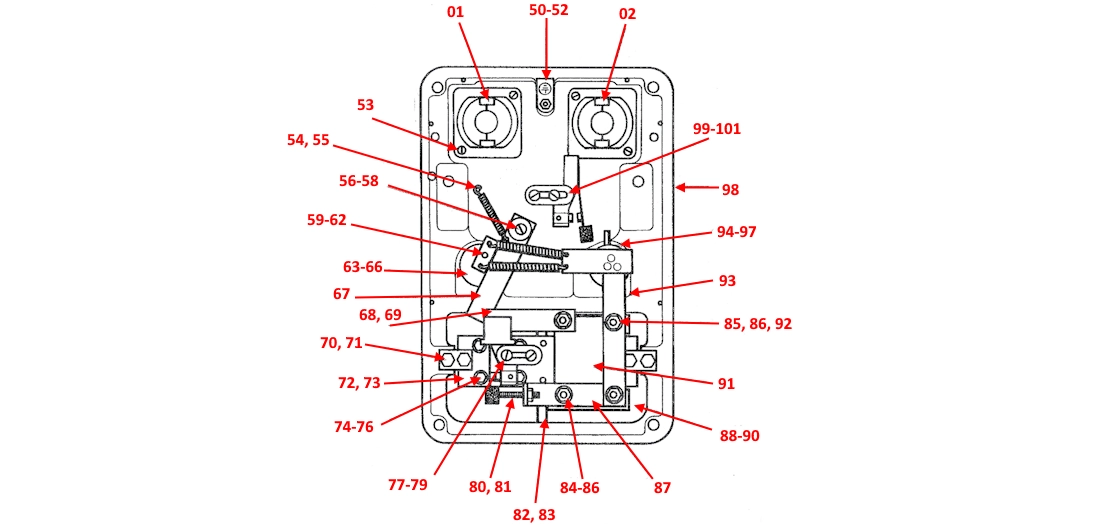

Spare parts for the IDEAL BSO25 Blade Welder (Rear view). This diagram shows the internal parts as if the transformer has been removed.

Click here to view spares for the BSO25 Front Panel

Label	Product Code	NAME (CLICK FOR DETAILS)	Price - Exc VAT	Stock	Buy
001	BO1329	ANNEAL SWITCH (WITH G521 HANDLE)	£91.05	In stock	ANNEAL SWITCH (WITH G521 HANDLE) quantity
002	BO1328	WELD SWITCH - BSO16 & BSO25 (WITH HANDLE G521)	£81.28	In stock	WELD SWITCH - BSO16 & BSO25 (WITH HANDLE G521) quantity
050	3879	EARTHING TAG	£1.20	In stock	EARTHING TAG quantity
051	Z14	BRASS STUD		Contact Us	Read more
052	BO5719	BRASS NUT	£1.90	In stock	BRASS NUT quantity
053	BO5476	CHEESE HEAD SLOTTED SCREW	£1.81	In stock	CHEESE HEAD SLOTTED SCREW quantity
054	5427	TENSION SPRING		Contact Us	Read more
055	Z4	MILLS PIN		Contact Us	Read more
056	5423	DISTANCE PIECE		Contact Us	Read more
057	5425	SPACING CAP		Contact Us	Read more
058	BO5478	CHEESE HEAD SLOTTED SCREW	£1.62	In stock	CHEESE HEAD SLOTTED SCREW quantity
059	5431	TENSION SPRING	£8.94	Contact Us	Read more
060	5277	SPRING ANCHOR PLATE		Contact Us	Read more
061	5424	ROLLER		Contact Us	Read more
062	Z6	MILLS PIN		Contact Us	Read more
063	5268	INDEX CAM	£44.48	Contact Us	Read more
064	5250	SWITCH CENTRE BOLT (SHORT)		Contact Us	Read more
065	5426	COMPRESSION SPRING		Contact Us	Read more
066	BO2100	STEEL BALL	£2.12	In stock	STEEL BALL quantity
067	5271	CAM LEVER		Contact Us	Read more
068	5269	STRIKER PLATE		Contact Us	Read more
069	5270	STRIKER PIN		Contact Us	Read more
070	5276	CARRIAGE CLAMP		Contact Us	Read more
071	BO5552	HEX HEAD SCREW	£1.91	In stock	HEX HEAD SCREW quantity
072	5278	CARRIAGE	£136.78	Contact Us	Read more
073	5281	INSULATOR PLATE	£15.73	Contact Us	Read more
074	5282	INSULATOR TUBE		Contact Us	Read more
075	BO5549	HEX SCREW	£1.70	In stock	HEX SCREW quantity
076	Z13	FIBRE WASHER		Contact Us	Read more
077	SM980	CONTACTOR - NORMALLY CLOSED	£124.60	In stock	CONTACTOR - NORMALLY CLOSED quantity
078	5430	SPACING BLOCK		Contact Us	Read more
079	Z8	CHEESE HEAD SCREW		Contact Us	Read more
080	Z9	STUD		Contact Us	Read more
081	Z17	HEX LOCKNUT		Contact Us	Read more
082	5284	SPARK PROTECTION PLATE		Contact Us	Read more
083	BO5261	CSK SCREW	£1.81	In stock	CSK SCREW quantity
084	5274	DISTANCE BOLT (SHORT)	£20.21	Contact Us	Read more
085	BO5751	LOCKNUT	£0.72	In stock	LOCKNUT quantity
086	BO5713	FULL NUT	£1.42	In stock	FULL NUT quantity
087	5272	SWITCH BRACKET		Contact Us	Read more
088	SM944	HAIRPIN & STRIP ASSEMBLY (INC B/BEARINGS)	£112.12	Contact Us	Read more
089	5279	STEEL RAILS	£18.55	In stock	STEEL RAILS quantity
090	BO2102	STEEL BALL	£1.87	In stock	STEEL BALL quantity
091	5273	CONNECTION PLATE	£4.54	Contact Us	Read more
092	5275	DISTANCE BOLT (LONG)	£21.03	Contact Us	Read more
093	SM937	CAM STRIKER		Contact Us	Read more
094	5251	SWITCH CENTER BOLT (LONG)		Contact Us	Read more
095	5252	CENTER CAM	£3.34	Only 1 left in stock	CENTER CAM quantity
096	Z10	DOWEL PIN		Contact Us	Read more
097	Z11	SEL LOC PIN		Contact Us	Read more
098	5240	FRONT PLATE		Contact Us	Read more
099	SM981	N/O CONTACTOR	£171.53	Only 1 left in stock	N/O CONTACTOR quantity
100	5428	SPACING BLOCK		Contact Us	Read more
101	BO5308	CHEESE HEAD SCREW		Contact Us	Read more
