INTERNAL VIEW (REAR) - IDEAL BSO16 BLADE WELDER

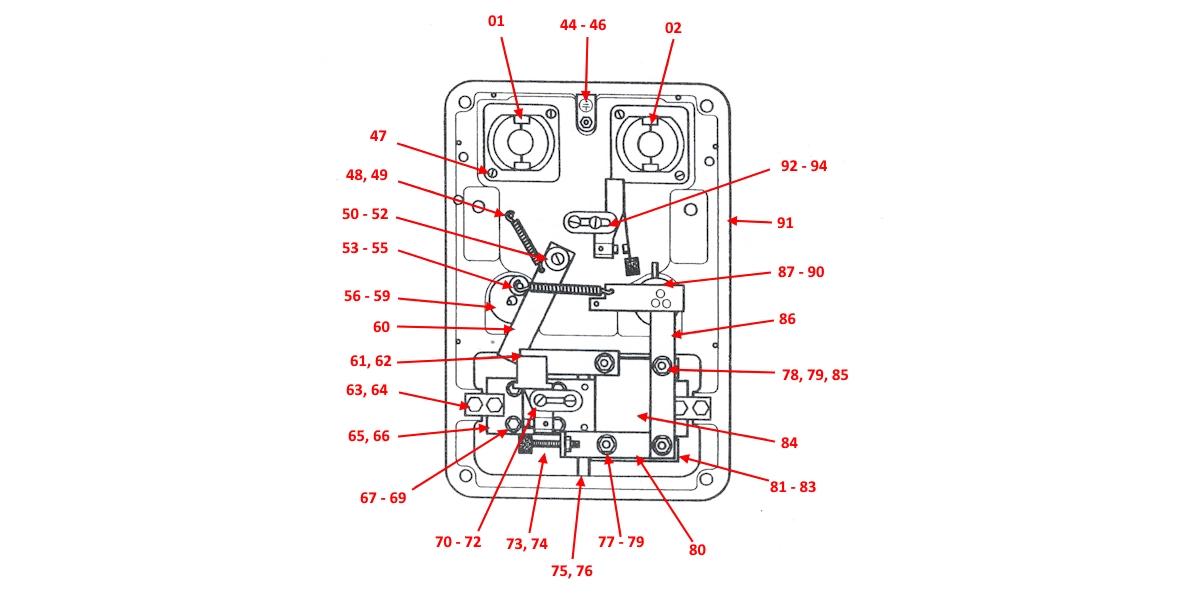

Internal Spare Parts for the Startrite BSO16 Blade Welder. The drawing shows the internal components from the rear, with the transformer removed. Transformers are available at request, contact us for information.

Click here to view the front panel spares for the BSO16 Blade Welder.

Label	Product Code	NAME (CLICK FOR DETAILS)	Price - Exc VAT	Stock	Buy
01	BO1329	ANNEAL SWITCH (WITH G521 HANDLE)	£91.05	In stock	ANNEAL SWITCH (WITH G521 HANDLE) quantity
02	BO1328	WELD SWITCH - BSO16 & BSO25 (WITH HANDLE G521)	£81.28	In stock	WELD SWITCH - BSO16 & BSO25 (WITH HANDLE G521) quantity
44	3879	EARTHING TAG	£1.20	In stock	EARTHING TAG quantity
45	Z14	BRASS STUD		Contact Us	Read more
46	BO5719	BRASS NUT	£1.90	In stock	BRASS NUT quantity
47	BO5476	CHEESE HEAD SLOTTED SCREW	£1.81	In stock	CHEESE HEAD SLOTTED SCREW quantity
48	5427	TENSION SPRING		Contact Us	Read more
49	BO5334	MILLS PIN		Contact Us	Read more
50	5423	DISTANCE PIECE		Contact Us	Read more
51	5425	SPACING CAP		Contact Us	Read more
52	BO5478	CHEESE HEAD SLOTTED SCREW	£1.62	In stock	CHEESE HEAD SLOTTED SCREW quantity
53	5424	ROLLER		Contact Us	Read more
54	5431	TENSION SPRING	£8.94	Contact Us	Read more
55	Z6	MILLS PIN		Contact Us	Read more
56	5268	INDEX CAM	£44.48	Contact Us	Read more
57	5250	SWITCH CENTRE BOLT (SHORT)		Contact Us	Read more
58	5426	COMPRESSION SPRING		Contact Us	Read more
59	BO2100	STEEL BALL	£2.12	In stock	STEEL BALL quantity
60	5271	CAM LEVER		Contact Us	Read more
61	5269	STRIKER PLATE		Contact Us	Read more
62	5270	STRIKER PIN		Contact Us	Read more
63	5276	CARRIAGE CLAMP		Contact Us	Read more
64	BO5552	HEX HEAD SCREW	£1.91	In stock	HEX HEAD SCREW quantity
65	5278	CARRIAGE	£136.78	Contact Us	Read more
66	5281	INSULATOR PLATE	£15.73	Contact Us	Read more
67	5282	INSULATOR TUBE		Contact Us	Read more
68	BO5549	HEX SCREW	£1.70	In stock	HEX SCREW quantity
69	Z13	FIBRE WASHER		Contact Us	Read more
69	Z7	FIBRE WASHER		Contact Us	Read more
70	SM980	CONTACTOR - NORMALLY CLOSED	£124.60	In stock	CONTACTOR - NORMALLY CLOSED quantity
71	5430	SPACING BLOCK		Contact Us	Read more
72	Z8	CHEESE HEAD SCREW		Contact Us	Read more
73	Z9	STUD		Contact Us	Read more
74	BO5712	FULL NUT	£1.46	In stock	FULL NUT quantity
75	5283	SPARK PROTECTION PLATE		Contact Us	Read more
76	BO5261	CSK SCREW	£1.81	In stock	CSK SCREW quantity
77	5274	DISTANCE BOLT (SHORT)	£20.21	Contact Us	Read more
78	BO5751	LOCKNUT	£0.72	In stock	LOCKNUT quantity
79	BO5713	FULL NUT	£1.42	In stock	FULL NUT quantity
80	5272	SWITCH BRACKET		Contact Us	Read more
81	SM944	HAIRPIN & STRIP ASSEMBLY (INC B/BEARINGS)	£112.12	Contact Us	Read more
82	5279	STEEL RAILS	£18.55	In stock	STEEL RAILS quantity
83	BO2102	STEEL BALL	£1.87	In stock	STEEL BALL quantity
84	5273	CONNECTION PLATE	£4.54	Contact Us	Read more
85	5275	DISTANCE BOLT (LONG)	£21.03	Contact Us	Read more
86	SM936	CAM STRIKER		Contact Us	Read more
87	5251	SWITCH CENTER BOLT (LONG)		Contact Us	Read more
88	5252	CENTER CAM	£3.34	Only 1 left in stock	CENTER CAM quantity
89	Z10	DOWEL PIN		Contact Us	Read more
90	Z11	SEL LOC PIN		Contact Us	Read more
91	5240	FRONT PLATE		Contact Us	Read more
92	SM981	N/O CONTACTOR	£171.53	Only 1 left in stock	N/O CONTACTOR quantity
93	5428	SPACING BLOCK		Contact Us	Read more
94	BO5308	CHEESE HEAD SCREW		Contact Us	Read more
