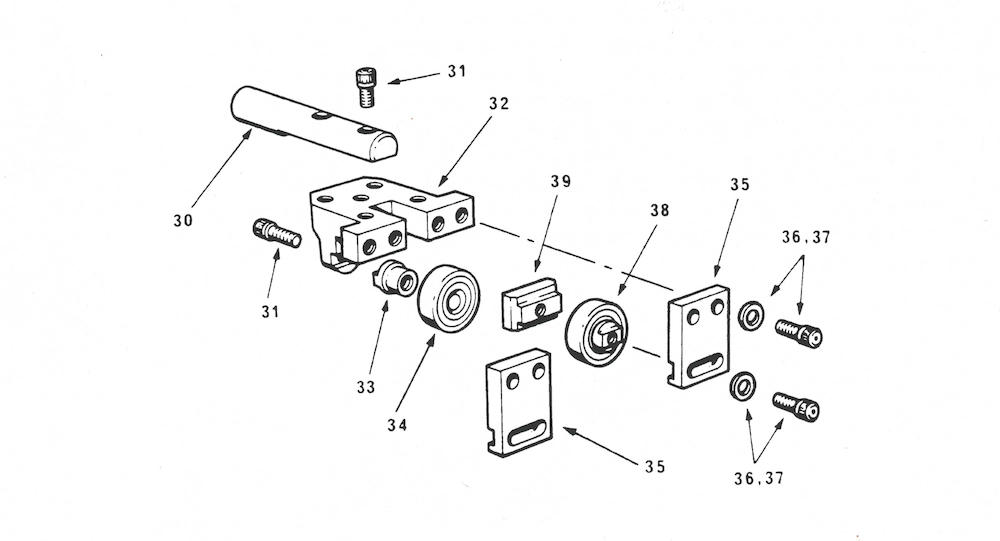

OPTION 5 - COMBINATION GUIDES
Combination Blade Guides for the Startrite V, T, R & S Series vertical bandsaws.
These guides can be turned 45° to cut at an angle, or to give you a deeper throat size.
These guides can be complex to setup and are not recommended unless specifically required for the angled functionality.
Startrite Combination guides are setup with ether inserts OR rollers (part 38 OR 39). These should match on the top and bottom guide.
| Label | Product Code | NAME (CLICK FOR DETAILS) | Price - Exc VAT | Stock | Buy | |
|---|---|---|---|---|---|---|
| *30-37 | SM290/A | COMBINATION GUIDE ASSEMBLY (WITHOUT GUIDE ROLLERS & INSERTS) | £406.18 | Only 1 left in stock | ||
| *30-39 | SM290/B | COMBINATION GUIDE ASSEMBLY WITH 1/2" ROLLERS | £535.35 | |||
| 30 | 2563 | ARM | £140.42 | In stock | ||
| 31 | BO5007 | CAP SCREW | £2.04 | In stock | ||
| 32 | 2562 | GUIDE BODY | £162.51 | In stock | ||
| 33 | 2565 | ROLLER SPINDLE | £37.91 | In stock | ||
| 34 | BO2002 | BEARING | £7.18 | In stock | ||
| 35 | 2564 | GUIDE BRACKET | £48.14 | In stock | ||
| 36 | BO5006 | CAP SCREW | £2.24 | In stock | ||
| 37 | BO5913 | WASHER | £0.68 | In stock | ||
| 38 | GSM306 | SIDE ROLLERS (SEE OPTIONS) | In stock | |||
| 39 | GSM316 | GUIDE INSERT PAIRS (SEE OPTIONS) | In stock |
