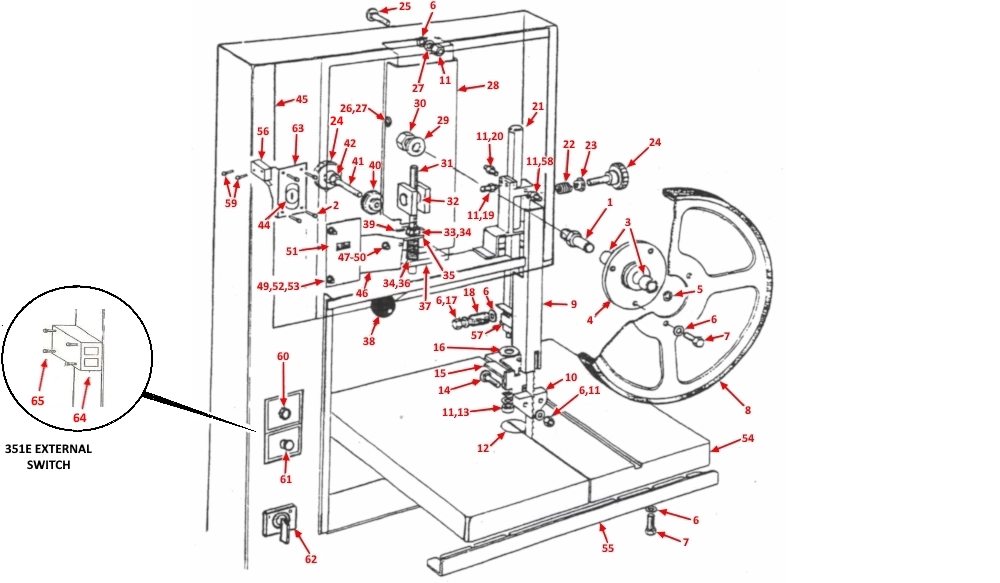

351S/351E & 352S UPPER ASSEMBLY
The Startrite 351S & 352S Spare parts. mostly share common parts. Part 62 – Speed selector is not required for 351S bandsaws.
The Hub & Spindle for the original needle roller hub are obsolete, if you require this you will need the newer ball bearing hub assembly – SM6700/1
| Label | Product Code | NAME (CLICK FOR DETAILS) | Price - Exc VAT | Stock | Buy | |
|---|---|---|---|---|---|---|
| *01 - 05 | SM6700/1 | WHEEL HUB ASSEMBLY - STARTRITE 301(S), 351(S) & 352S | £144.59 | In stock | ||
| 01 | 10162 | BANDWHEEL SPINDLE 301E - 352S FOR BALL BEARINGS TYPE HUB | £40.70 | In stock | ||
| 02 | BO5476 | CHEESE HEAD SLOTTED SCREW | £1.81 | In stock | ||
| 03 | BO2047 | HUB BEARING | £8.91 | In stock | ||
| 04 | 10163 | TOP BANDWHEEL HUB (BALL BEARING TYPE) 301E - 352S | £49.50 | In stock | ||
| 05 | BO6003 | EXTERNAL CIRCLIP | £2.04 | In stock | ||
| 06 | BO5917 | WASHER | £1.05 | In stock | ||
| 07 | BO5560 | HEX SCREW | £1.73 | In stock | ||
| 08 | 2473 | 14" BANDWHEEL FOR STARTRITE VERTICAL BANDSAWS | £180.29 | Available on back-order | ||
| 09 | SM2853 | BLADE GUARD - FULLY ENCLOSED (351S / 352S) | £198.00 | In stock | ||
| 10 | G4891 | STARTRITE BLADE GUIDES - 301(S), 351(S) & 352(S) | In stock | |||
| 11 | BO5715 | FULL NUT | £1.81 | In stock | ||
| 12 | 6756 | STARTRITE TABLE INSERT - 45mm Diameter | £15.37 | In stock | ||
| 13 | 4919 | WASHER | £9.61 | In stock | ||
| 14 | BO5621 | COACH BOLT | £1.90 | In stock | ||
| 15 | SM1434 | GUIDE BRACKET | £43.65 | In stock | ||
| 16 | BO5923 | WASHER | £1.87 | In stock | ||
| 17 | BO5566 | HEX SCREW | £2.18 | In stock | ||
| 18 | 5496 | BLADE GUARD HANDLE | £9.99 | In stock | ||
| 19 | BO5209 | SOCKET SET SCREW | £1.50 | In stock | ||
| 20 | BO5210 | GRUB SCREW | ||||
| 21 | 10237 | TOP GUIDE POST - 351S & 352S | £130.04 | |||
| 22 | BO2208 | FLEXO SPRING | £6.71 | In stock | ||
| 23 | 4988 | SPECIAL NUT | £28.02 | In stock | ||
| 24 | BO2631 | SPLINE HANDLE | £17.55 | In stock | ||
| 25 | BO5620 | COACH BOLT | £3.07 | In stock | ||
| 26 | 6705 | PIVOT PIN | £12.52 | |||
| 27 | BO5930 | STARLOCK WASHER | £1.63 | In stock | ||
| 28 | SM1676 | TRACKING CHANNEL | ||||
| 29 | BO5922 | WASHER | £0.95 | In stock | ||
| 30 | BO5777 | BINX NUT | £6.54 | In stock | ||
| 31 | 10372 | TENSION SCREW | £51.88 | In stock | ||
| 32 | 10371 | TRUNNION NUT | £32.41 | In stock | ||
| 33 | BO5756 | CASTLE NUT - RH | £2.77 | In stock | ||
| 34 | BO5919 | WASHER | £1.15 | In stock | ||
| 35 | 7834 | SPRING PLATE | £23.17 | |||
| 36 | BO2241 | DISC SPRING | £3.45 | In stock | ||
| 37 | SM1675 | GUIDE WELDED ASSEMBLY | £119.19 | Only 1 left in stock | ||
| 38 | BO2530 | BALL KNOB | £19.58 | In stock | ||
| 39 | BO5370 | SEL LOC | £1.63 | In stock | ||
| 40 | 6706 | TRACKING LOCK KNOB | £27.69 | In stock | ||
| 41 | G5352 | STUD (SEE OPTIONS) | In stock | |||
| 42 | BO5753 | HALF NUT | £1.43 | In stock | ||
| 44 | GBO2562 | DOOR LOCK & KEYS (2) | ||||
| 45 | SM2860 | UPPER DOOR | ||||
| 46 | 7354 | TENSION INDICATOR PLATE | £58.08 | |||
| 47 | BO7782 | PIVOT BUSH | ||||
| 48 | BO5547 | HEXAGON HEAD SCREW | £1.86 | In stock | ||
| 49 | BO5913 | WASHER | £0.68 | In stock | ||
| 50 | BO5773 | BINX NUT | £1.81 | In stock | ||
| 51 | 7878 | TENSION PLATE | £7.63 | |||
| 52 | BO5713 | FULL NUT | £1.42 | In stock | ||
| 53 | BO5929 | STAR WASHER | £3.26 | In stock | ||
| 54 | GSM2862 | TABLE 351S / 352S (CONTACT US) | In stock | |||
| 55 | G6707 | FENCE RAIL - CONTACT US | In stock | |||
| 56 | BO1595 | MICROSWITCH | £19.57 | In stock | ||
| 57 | SM585/A | UPPER THRUST ROD 301 - 352S M (LONG) | £40.70 | In stock | ||
| 58 | BO5203 | SOCKET SET SCREW | £1.81 | In stock | ||
| 59 | BO5473 | CHEESE HEAD SLOTTED SCREW | £1.52 | In stock | ||
| 60 | KS0016 | START BUTTON & CONTACT BLOCK | £52.35 | In stock | ||
| 61 | KS0017 | STAY IN STOP BUTTON (40mm) & CONTACT BLOCK | £56.87 | In stock | ||
| 62 | BO2975 | SPEED SELECTOR 352S | £78.81 | In stock | ||
| 63 | 10256 | MICROSWITCH MOUNTING BRACKET | £31.78 | In stock | ||
| 64 | WOOD-STARTERS | WOOD SAW STARTER BOX - DC BRAKE OPTIONS AVAILABLE (SEE OPTIONS) | In stock | |||
| 65 | BO5016 | CAP SCREW | £2.04 | In stock |
