CHEVRON GUIDES - 316

Startrite 316 Chevron Blade Guide spare parts. Click here for other blade guides for the Startrite 316.

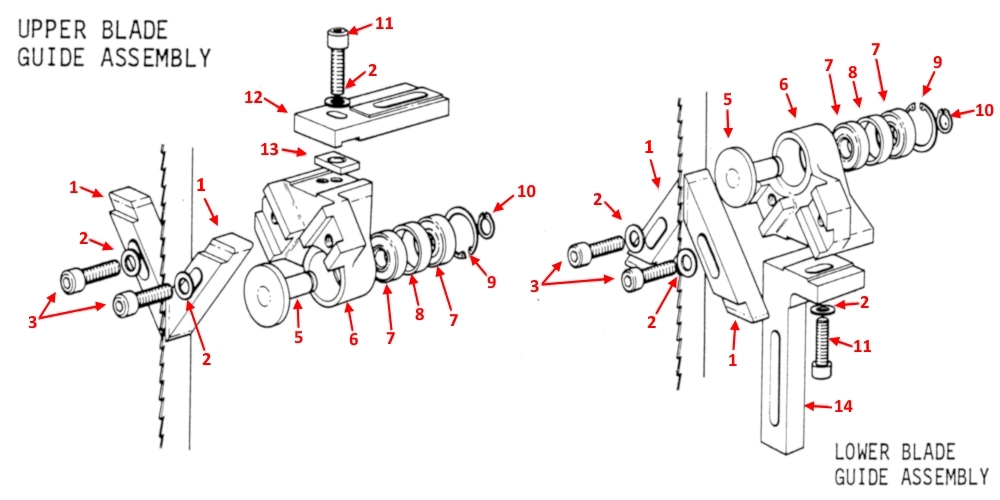

exploded diagram of Startrite V500 / V900 / 316 Chevron Guides
    LabelProduct CodeNAME (CLICK TITLE OR PRODUCT CODE FOR MORE INFO)PriceStockBuy
    *SM1662UPPER CHEVRON HOLDER£802.91

    In stock

    **SM1661LOWER CHEVRON HOLDER£764.67

    In stock

    01SM1659CHEVRON BLADE GUIDES (SEE OPTIONS)

    In stock

    02BO5917WASHER£0.86

    In stock

    03BO5076CAP SCREW£1.50

    In stock

    05SM1660BLADE THRUST PLATE£102.21

    In stock

    067807BLADE GUIDE HOUSING£178.56

    In stock

    07BO2021BEARING£10.82

    In stock

    087819BEARING SPACER£10.80

    In stock

    09BO6032INTERNAL CIRCLIP£1.25

    In stock

    10BO6004EXTERNAL CIRCLIP£1.65

    In stock

    11BO5075CAP SCREW£1.48

    In stock

    127923UPPER GUIDE PLATE£149.39

    In stock

    137922KEY£32.81

    In stock

    147808GUIDE HOUSING BRACKET£167.97

    In stock
