TRACKING BANDWHEEL HUB & WHEEL BRUSH - V900

The 16″ Bandwheel on the Startrite V900 Bandwheel tracking hub (no.83) is the same bandwheel found in other locations on this bandsaw.

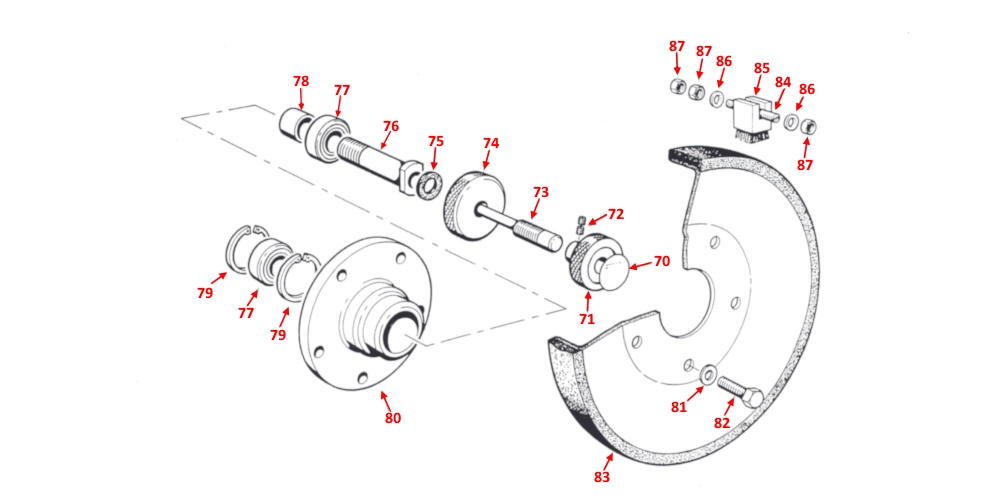

Exploded Parts Diagram for the Startrite V900 TRACKING BANDWHEEL HUB
    LabelSKUNAME (CLICK TITLE OR PRODUCT CODE FOR MORE INFO)PriceStockBuy
    *70-80SM364V500 / V900 / 316 TRACKING HUB - COMPLETE ASSEMBLY£498.80

    In stock

    702466BLADE TRACKING LABEL£2.69

    In stock

    712873KNURLED HAND NUT£44.66

    In stock

    72BO5194GRUB SCREW£0.94

    In stock

    732876SHAFT£44.90

    In stock

    742874KNURLED LOCKNUT£54.84

    In stock

    753342FIBRE WASHER£2.69

    In stock

    762875BEARING SHAFT£150.25

    Only 1 left in stock

    77BO2020BALL BEARING£15.47

    In stock

    782878SPACER£13.78

    In stock

    79BO6042INTERNAL CIRCLIP£1.68

    In stock

    802877/BBANDWHEEL HUB (62MM BORE)£274.15

    Only 1 left in stock

    81BO5917WASHER£0.86

    In stock

    82BO5563HEXAGON HEAD SCREW£1.49

    In stock

    83791116" BANDWHEEL FOR STARTRITE VERTICAL BANDSAWS£291.05

    In stock

    842579STUD£17.55

    In stock

    852270BANDWHEEL WIRE BRUSH£18.84

    In stock

    86BO5922WASHER£0.78

    In stock

    87BO5703FULL NUT£2.84

    In stock
