GEARBOX OUTPUT - V900

This listing is for the output side of the Startrite V900 Gearbox. To view the Gearbox input & Gearshift Click Here.
Get in touch to find out what complete / used gearboxes are available.

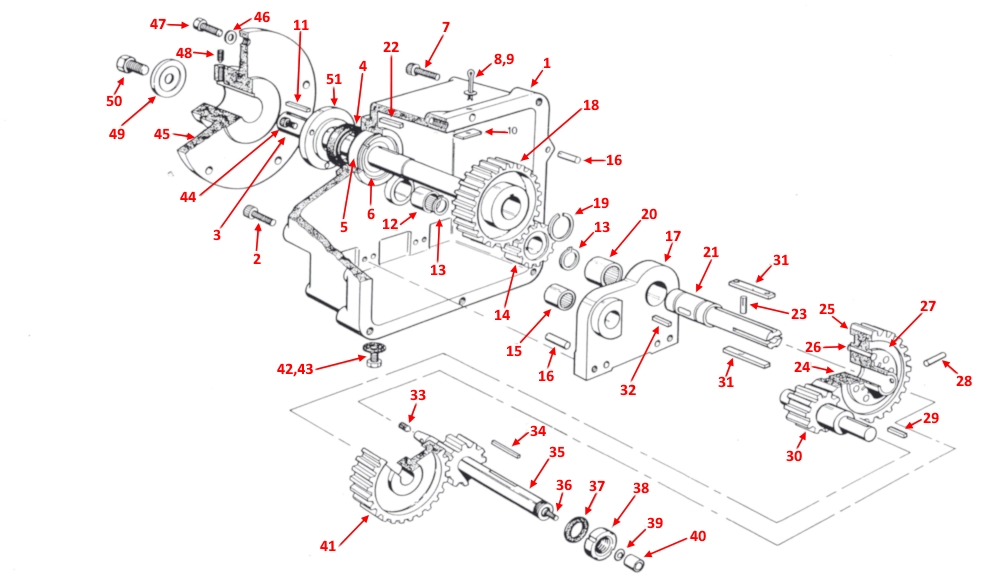

EXPLODED PARTS DIAGRAM FOR A STARTRITE V900 GEARBOX OUTPUT
    LabelSKUNAME (CLICK TITLE OR PRODUCT CODE FOR MORE INFO)PriceStockBuy
    *SM331/FGEARBOX ASSEMBLY V500/V900 50Hz£4,864.87

    *SM331/DGEARBOX ASSEMBLY V500/V900 60Hz£4,864.87

    *24-27SM2066GEAR KIT - ASSEMBLED£597.45

    In stock

    012651/BGEARBOX HOUSING£609.87

    02BO5074CAP SCREW£1.50

    In stock

    037581SHAFT OUTPUT£218.23

    In stock

    04BO2116SEAL£18.16

    In stock

    05BO2019BEARING£67.50

    In stock

    06BO6042INTERNAL CIRCLIP£1.68

    In stock

    07BO5086CAP SCREW£1.49

    In stock

    082657WASHER£18.00

    In stock

    09BO5812SPLIT PIN£0.75

    In stock

    102799BAFFLE PLATE£4.57

    In stock

    112659KEY£11.87

    In stock

    12BO2072NEEDLE RACE£37.28

    In stock

    13BO6009EXTERNAL CIRCLIP£1.68

    In stock

    142653FINAL DRIVE PINION 21 TOOTH£271.39

    In stock

    15BO2069NEEDLE RACE£25.03

    In stock

    16BO5890DOWEL£1.71

    In stock

    172660/BBRIDGE£104.77

    In stock

    187582FINAL DRIVE GEAR£313.31

    In stock

    19BO6028EXTERNAL RING£1.68

    In stock

    20BO2063NEEDLE RACE£16.18

    In stock

    212656INTERMEDIATE SHAFT£268.57

    In stock

    227583KEY£5.82

    In stock

    23BO5370SEL LOC£1.34

    In stock

    241036LINER£102.08

    In stock

    251044INTERMEDIATE GEAR£194.38

    In stock

    26BO5799RIVET£1.57

    In stock

    271035CLUTCH PLATE£169.53

    In stock

    281024PIN£5.28

    In stock

    291147KEY£1.65

    In stock

    303253LAYSHAFT 19 TEETH£359.19

    In stock

    311027/BKEY (V500/V900/316)£18.97

    In stock

    322658KEY£2.43

    In stock

    33BO5185GRUB SCREW£1.49

    In stock

    345920KEY£5.06

    In stock

    357310INPUT SHAFT£290.94

    In stock

    367303CONTROL ROD£83.98

    In stock

    371209RUBBER WASHER 1 1/8 OD£5.59

    In stock

    38BO5781LOCKNUT£6.13

    In stock

    39BO2250O RING£5.41

    In stock

    40BO2331OILITE BUSH£5.65

    In stock

    413252GEAR 60 TEETH£240.51

    In stock

    42BO5552HEX HEAD SCREW£1.57

    In stock

    43BO5955FIBRE WASHER

    44BO5067CAP SCREW£1.56

    In stock

    457610BANDWHEEL HUB£256.98

    In stock

    46BO5917WASHER£0.86

    In stock

    47BO5563HEXAGON HEAD SCREW£1.49

    In stock

    48BO5208SOCKET SET SCREW£1.47

    In stock

    496541SPECIAL WASHER£11.55

    In stock

    50BO5577HEX SCREW£2.19

    In stock
