SLIDING TABLE & CRADLE - V500

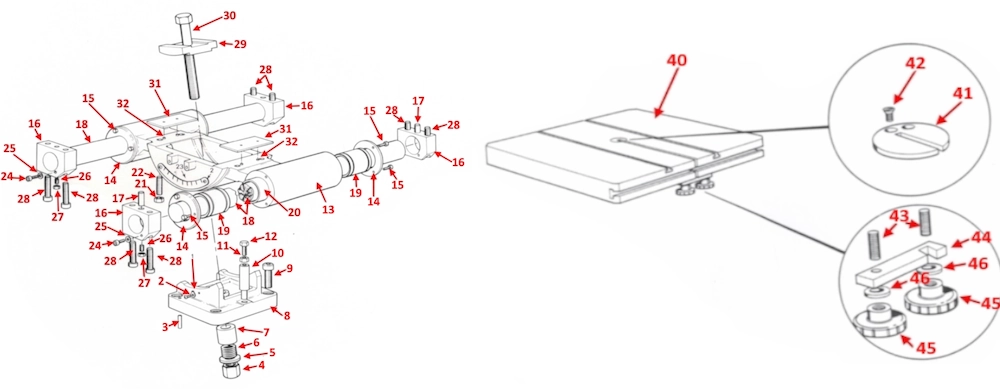

Startrite V500 Sliding Table Assembly. This assembly is used for both the Manual & Hydraulic Sliding Tables, with different additional components each.
Click Here for the Manual Feed Kit Spares for Manual Sliding Tables.
Click Here for the Hydraulic Parts for Hydraulic Sliding Tables.
| Label | Product Code | NAME (CLICK FOR DETAILS) | Price - Exc VAT | Stock | Buy | |
|---|---|---|---|---|---|---|
| 01 | 2812 | POINTER | £10.20 | In stock | ||
| 02 | BO5414 | POZI HEAD SCREW | ||||
| 03 | BO5378 | SPRING DOWEL | ||||
| 04 | 7876 | NUT | £14.38 | In stock | ||
| 05 | 6893 | SPACER | £6.69 | In stock | ||
| 06 | BO2215 | SPRING | £6.56 | In stock | ||
| 07 | 7875 | COLLAR | £19.08 | In stock | ||
| 08 | 7748/A | TILT CRADLE V500 502 502S | £814.27 | In stock | ||
| 09 | BO5094 | CAP SCREW | £2.04 | In stock | ||
| 10 | 7336 | STOP PIN | £33.91 | In stock | ||
| 11 | BO5715 | FULL NUT | £1.81 | In stock | ||
| 12 | BO5563 | HEXAGON HEAD SCREW | £1.81 | In stock | ||
| 13 | 7749 | SLIDING TABLE TRUNNION | ||||
| 14 | 7811 | END CAP | £15.35 | In stock | ||
| 15 | BO5546 | HEX SCREW | £1.60 | In stock | ||
| 16 | 7847 | SHAFT SUPPORT BLOCK | £251.68 | In stock | ||
| 18 | BO2041 | SHAFT | £178.22 | In stock | ||
| 19 | BO2042 | LINEAR BEARING for V500H / V900H | £107.35 | In stock | ||
| 20 | 7812 | SPACER | £13.59 | In stock | ||
| 21 | BO5755 | HALF HEX LOCKNUT | £1.98 | In stock | ||
| 22 | BO5217 | GRUB SCREW | ||||
| 23 | 7872 | PROTRACTOR SCALE | £35.64 | In stock | ||
| 24 | BO5066 | CAP SCREW | £1.81 | In stock | ||
| 25 | BO5915 | WASHER | £0.91 | In stock | ||
| 26 | BO5195 | GRUB SCREW | £1.72 | In stock | ||
| 27 | BO5752 | LOCKNUT | £0.72 | In stock | ||
| 28 | BO5088 | CAP SCREW | £1.82 | In stock | ||
| 29 | 7874 | CLAMP | £62.83 | In stock | ||
| 30 | BO5616 | HEX HEAD BOLT - METRIC | £7.50 | In stock | ||
| 31 | 7813 | WEAR STRIP | £39.13 | In stock | ||
| 32 | BO5344 | SPRING TENSION | £2.84 | In stock | ||
| 40 | 7750 | SLIDING TABLE | £1,776.93 | |||
| 41 | 2922 | TABLE INSERT - STARTRITE VERTICAL BANDSAWS | £19.02 | In stock | ||
| 42 | BO5306 | STEEL POZI PAN | £3.29 | In stock | ||
| 43 | BO5839 | STUD | £3.93 | In stock | ||
| 44 | 2828 | TABLE LATCH | £35.81 | In stock | ||
| 45 | BO2547 | HANDWHEEL | £16.33 | In stock | ||
| 46 | BO5919 | WASHER | £1.15 | In stock |
