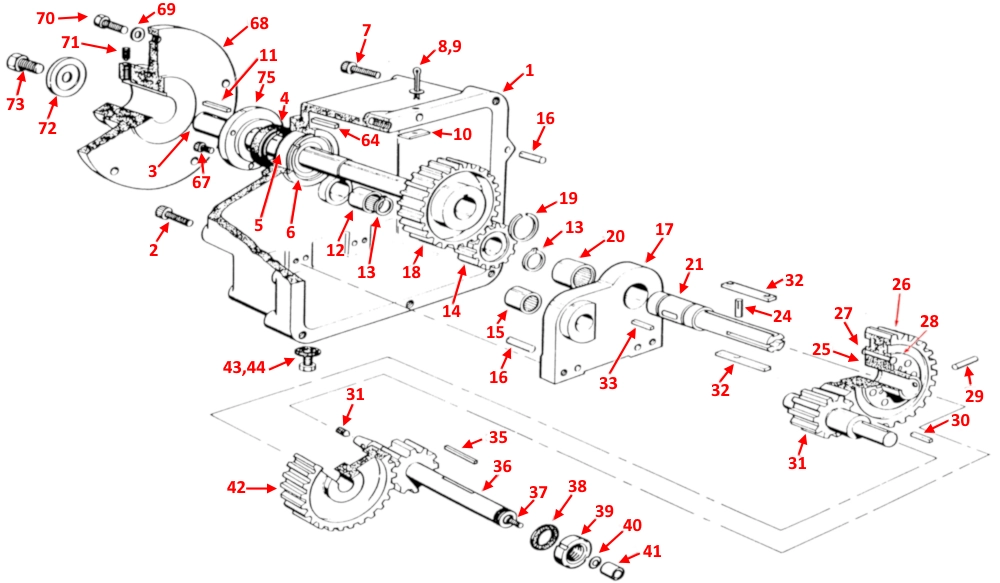

GEARBOX OUTPUT ASSEMBLY & DRIVE WHEEL HUB - V500
Startrite V500 Gearbox output spares in the table below. The Gearbox for the V500 is split into two categories, For the GEARBOX INPUT & GEARSHIFT CLICK HERE. If any spares you require are out of stock don’t hesitate to Contact Us.
See the top of the product table for Assemblies, & the 20″ Bandwheel (Not Pictured)
| Label | Product Code | NAME (CLICK FOR DETAILS) | Price - Exc VAT | Stock | Buy | |
|---|---|---|---|---|---|---|
| * | 7791 | 20" STARTRITE BANDWHEEL for VERTICAL STARTRITE BANDSAWS | £455.27 | In stock (can be backordered) | ||
| *25-28 | SM2066 | GEAR KIT - ASSEMBLED | £722.92 | In stock | ||
| 01 | 2651/B | GEARBOX HOUSING | £737.95 | |||
| 02 | BO5074 | CAP SCREW | £1.82 | In stock | ||
| 03 | 7581 | SHAFT OUTPUT | £264.07 | In stock | ||
| 04 | BO2116 | SEAL | £21.98 | In stock | ||
| 05 | BO2019 | BEARING | £81.68 | In stock | ||
| 06 | BO6042 | INTERNAL CIRCLIP | £2.04 | In stock | ||
| 07 | BO5086 | CAP SCREW | £1.81 | In stock | ||
| 08 | 2657 | WASHER | £21.78 | In stock | ||
| 09 | BO5812 | SPLIT PIN | £0.92 | In stock | ||
| 10 | 2799 | BAFFLE PLATE | £5.54 | In stock | ||
| 11 | 2659 | KEY | £14.37 | In stock | ||
| 12 | BO2072 | NEEDLE RACE | £45.12 | In stock | ||
| 13 | BO6009 | EXTERNAL CIRCLIP | £2.04 | In stock | ||
| 14 | 2653 | FINAL DRIVE PINION 21 TOOTH | £328.39 | In stock | ||
| 15 | BO2069 | NEEDLE RACE | £30.30 | In stock | ||
| 16 | BO5890 | DOWEL | £2.08 | In stock | ||
| 17 | 2660/B | BRIDGE | £126.78 | In stock | ||
| 18 | 7582 | FINAL DRIVE GEAR | £379.12 | In stock | ||
| 19 | BO6028 | EXTERNAL RING | £2.04 | In stock | ||
| 20 | BO2063 | NEEDLE RACE | £19.58 | In stock | ||
| 21 | 2656 | INTERMEDIATE SHAFT | £324.98 | In stock | ||
| 24 | BO5370 | SEL LOC | £1.63 | In stock | ||
| 25 | 1036 | LINER | £123.52 | In stock | ||
| 26 | 1044 | INTERMEDIATE GEAR | £235.21 | In stock | ||
| 27 | BO5799 | RIVET | £1.91 | In stock | ||
| 28 | 1035 | CLUTCH PLATE | £205.14 | In stock | ||
| 29 | 1024 | PIN | £6.40 | In stock | ||
| 30 | 1147 | KEY | £2.01 | |||
| 31 | 3253 | LAYSHAFT 19 TEETH | £434.63 | In stock | ||
| 32 | 1027/A | KEY ( WITH INDENTS ) | £30.16 | In stock | ||
| 33 | 2658 | KEY | £2.95 | In stock | ||
| 34 | BO5185 | GRUB SCREW | £1.81 | In stock | ||
| 35 | 5920 | KEY | £6.13 | In stock | ||
| 36 | 7310 | INPUT SHAFT | £352.05 | In stock | ||
| 37 | 7303 | CONTROL ROD | £101.62 | In stock | ||
| 38 | 1209 | RUBBER WASHER 1 1/8 OD | £6.77 | In stock | ||
| 39 | BO5806 | HALF LOCKNUT | ||||
| 40 | BO2250 | O RING | £6.56 | In stock | ||
| 41 | BO2331 | OILITE BUSH | £6.85 | In stock | ||
| 42 | 3252 | GEAR 60 TEETH | £291.03 | In stock | ||
| 43 | BO5552 | HEX HEAD SCREW | £1.91 | In stock | ||
| 44 | PC00043 | FIBRE WASHER | £0.30 | In stock | ||
| 64 | 7583 | KEY | £7.06 | In stock | ||
| 67 | BO5067 | CAP SCREW | £1.90 | In stock | ||
| 68 | 7610 | BANDWHEEL HUB | £310.95 | In stock | ||
| 69 | BO5917 | WASHER | £1.05 | In stock | ||
| 70 | BO5563 | HEXAGON HEAD SCREW | £1.81 | In stock | ||
| 71 | BO5203 | SOCKET SET SCREW | £1.81 | In stock | ||
| 72 | 6541 | SPECIAL WASHER | £13.99 | In stock | ||
| 73 | BO5577 | HEX SCREW | £2.66 | In stock | ||
| 74 | 2601 | FORK | £232.32 | |||
| 75 | 7598 | END CAP (OUTPUT SHAFT) | £80.63 | In stock |
