MITRE GAUGE - 502
This Mitre Gauge for the Startrite 502 bandsaw allows for easy and accurate cutting of angles. When cutting specific angles on your 502 bandsaw, this attachment is a must.
Simply set the angle you wish to make the cut at on the mitre gauge, drop strip into the suitable slot on the table face and use the mitre gauge to feed material into the bandsaw blade.

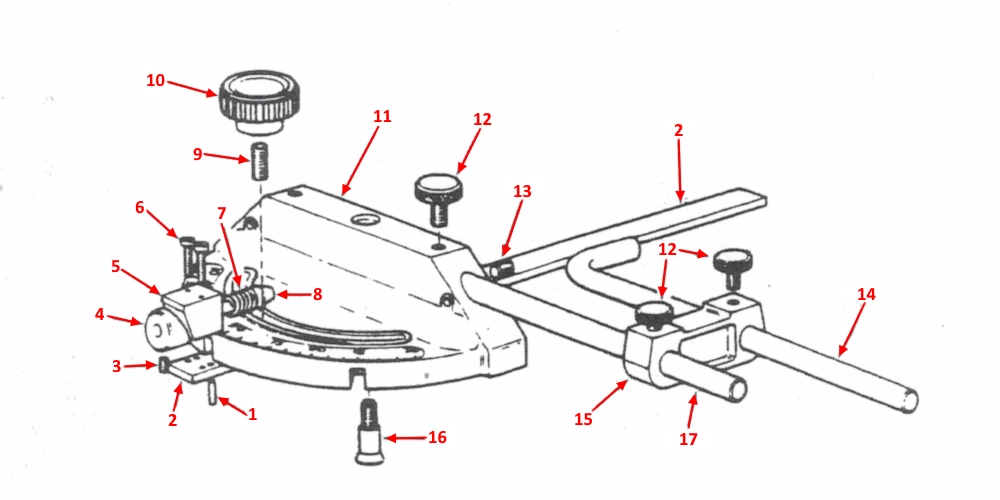

| Label | Product Code | NAME (CLICK FOR DETAILS) | Price - Exc VAT | Stock | Buy | |
|---|---|---|---|---|---|---|
| *01-17 | SM1522 | MITRE GAUGE ASSEMBLY - 502 | ||||
| 01 | BO5340 | SEL LOC PIN | ||||
| 02 | 7451 | TENNON STRIP | ||||
| 03 | BO5185 | GRUB SCREW | £1.81 | In stock | ||
| 04 | 8068 | KNOB | ||||
| 05 | 7794 | BLOCK | ||||
| 06 | BO5473 | CHEESE HEAD SLOTTED SCREW | £1.52 | In stock | ||
| 07 | BO2229 | SPRING | £5.28 | In stock | ||
| 08 | 7793 | LOCATION PIN | £24.20 | In stock | ||
| 09 | 7453 | STUD | ||||
| 10 | BO2542 | HAND KNOB | ||||
| 11 | 7436 | MITRE GAUGE BODY | ||||
| 12 | 7486 | THUMB SCREW | £16.33 | In stock | ||
| 13 | BO5193 | GRUB SCREW | £1.62 | In stock | ||
| 14 | 7485 | STOP BAR | £20.38 | In stock | ||
| 15 | 1507/B | BRIDGE PIECE | £65.07 | |||
| 16 | 7454 | PIVOT PIN | £16.94 | In stock | ||
| 17 | 7484 | CLAMP BAR | £11.50 | In stock |
