352 - UPPER ASSEMBLY

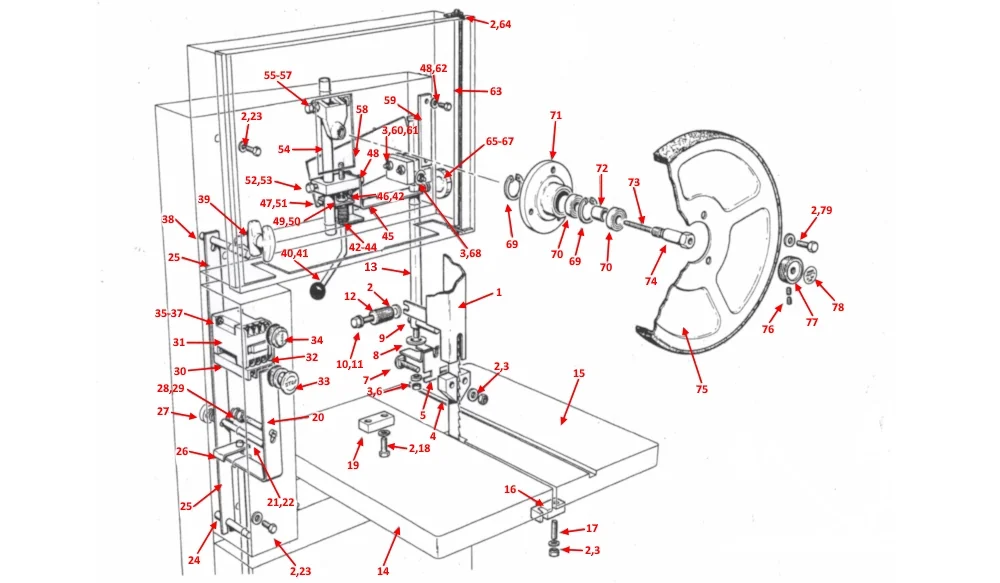

Startrite 352 Upper Assembly Spare Parts.
Click Here to view the 352 lower assembly spares.
IMPORTANT – IF YOUR HUB DOES NOT HAVE THE PICTURED ‘GROOVED RING’ THEN IT HAS BEEN SUPERCEEDED. ONLY BEARINGS ARE AVAILABLE (BO2000) FOR NON GROVED HUBS.
IF OTHER SPARES ARE REQUIRED, YOU WILL NEED A HUB ASSEMBLY SM284. (see G2000 for bearing options)
| Label | Product Code | NAME (CLICK FOR DETAILS) | Price - Exc VAT | Stock | Buy | |
|---|---|---|---|---|---|---|
| *69 - 79 | SM284 | TRACKING HUB ASSEMBLY | £267.23 | In stock | ||
| 01 | SM586 | 352 BLADE GUARD - FULLY ENCLOSED (NEW) | £198.00 | In stock | ||
| 02 | BO5918 | WASHER-PLATED | £1.14 | In stock | ||
| 03 | BO5715 | FULL NUT | £1.81 | In stock | ||
| 04 | G4891 | STARTRITE BLADE GUIDES - 301(S), 351(S) & 352(S) | In stock | |||
| 05 | GSM829 | GUIDE BRACKET (SEE OPTIONS) | In stock | |||
| 06 | 4919 | WASHER | £9.61 | In stock | ||
| 07 | BO5621 | COACH BOLT | £1.90 | In stock | ||
| 08 | 5060 | WASHER | £1.87 | In stock | ||
| 09 | SM585/A | UPPER THRUST ROD 301 - 352S M (LONG) | £40.70 | In stock | ||
| 10 | BO5566 | HEX SCREW | £2.18 | In stock | ||
| 11 | BO5917 | WASHER | £1.05 | In stock | ||
| 12 | 5496 | BLADE GUARD HANDLE | £9.99 | In stock | ||
| 13 | 4889/A | TOP GUIDE POST (MODEL 352) 465mm LONG | £154.88 | In stock | ||
| 14 | 4836 | TABLE SECTION - LEFT | ||||
| 15 | 4837 | TABLE SECTION - RIGHT | ||||
| 16 | 4894 | TABLE LATCH | £22.37 | In stock | ||
| 17 | BO5837 | STUD | £3.69 | In stock | ||
| 18 | BO5562 | HEX SCREW | £1.60 | In stock | ||
| 19 | 4893 | TABLE CLAMP | £13.24 | In stock | ||
| 20 | 4996 | SWITCH BRACKET | £48.94 | |||
| 21 | 4975 | SWITCH PIN | £33.91 | In stock | ||
| 22 | BO5814 | SPLIT PIN | £1.94 | In stock | ||
| 23 | BO5561 | HEX SCREW | £1.82 | In stock | ||
| 24 | 4895/A | DOOR STOP ROD (LOWER) - 93mm | £20.38 | In stock | ||
| 25 | 5022 | SWITCH LEVER | ||||
| 26 | SM839 | SWITCH ROD (KIT FORM, TO BE WELDED ON ASSEMBLY) | ||||
| 27 | BO2207 | SPRING (COMPRESSION) | £6.15 | In stock | ||
| 28 | 4979 | PIVOT PIN | £20.38 | In stock | ||
| 29 | BO5716 | HEX NUT | £1.87 | In stock | ||
| 30 | GBO1201 | OVERLOAD UNIT (SEE OPTIONS) | In stock | |||
| 31 | GBO1221 | CONTACTOR w/ AUX CONTACT (SEE OPTIONS) | In stock | |||
| 33 | BO1192 | STOP BUTTON | £58.08 | In stock | ||
| 34 | BO1193 | START BUTTON | £58.08 | In stock | ||
| 35 | BO5477 | CHEESE HEAD SLOTTED SCREW | £1.81 | In stock | ||
| 36 | BO5712 | FULL NUT | £1.46 | In stock | ||
| 37 | BO5941 | SHAKEPROOF WASHER | £1.37 | In stock | ||
| 38 | 4895/B | DOOR STOP ROD (UPPER) 180mm LONG | £20.38 | In stock | ||
| 39 | BO2543 | LOCKING HANDLE with 2 KEYS | £68.90 | In stock | ||
| 40 | BO2530 | BALL KNOB | £19.58 | In stock | ||
| 41 | 4902/A | TENSION SCREW - LEFT HAND | £69.50 | |||
| 42 | 4904 | PIVOT PLATE | £36.33 | |||
| 43 | BO2241 | DISC SPRING | £3.45 | In stock | ||
| 44 | 4907 | PLATE | £15.07 | In stock | ||
| 45 | 4903 | ANGLE BRACKET | ||||
| 46 | 4905 | PIVOT BUSH | £12.28 | |||
| 47 | BO5871 | HAMMER DRIVE SCREW | £2.09 | In stock | ||
| 48 | BO5546 | HEX SCREW | £1.60 | In stock | ||
| 49 | 8315 | SLOTTED NUT - LH THREAD | £30.52 | In stock | ||
| 51 | 4906 | PIVOT PIN | £16.52 | Only 1 left in stock | ||
| 52 | BO5564 | HEX SCREW | £2.04 | In stock | ||
| 53 | 4899 | TENSION BLOCK | £79.52 | In stock | ||
| 54 | 4900 | TENSION ROD | ||||
| 55 | 5681 | TILT BRACKET | £120.26 | In stock | ||
| 56 | 5682 | PIVOT SCREW | £9.83 | In stock | ||
| 57 | BO5753 | HALF NUT | £1.43 | In stock | ||
| 58 | 4918 | TENSION INDICATOR PLATE | ||||
| 59 | 4861 | CLAMP PLATE | ||||
| 60 | 4859 | GUIDE BLOCK | £31.54 | |||
| 62 | BO5913 | WASHER | £0.68 | In stock | ||
| 63 | 4922 | HINGE PIN (UPPER) | ||||
| 64 | BO5930 | STARLOCK WASHER | £1.63 | In stock | ||
| 65 | 4988 | SPECIAL NUT | £28.02 | In stock | ||
| 66 | BO2208 | FLEXO SPRING | £6.71 | In stock | ||
| 67 | SM862 | CLAMPING HANDLE | ||||
| 68 | BO5205 | SOCKET SET SCREW | £1.81 | In stock | ||
| 69 | BO6034 | INTERNAL CIRCLIP | £1.30 | In stock | ||
| 70 | GBO2000 | BEARING (SEE OPTIONS) | In stock | |||
| 71 | 5115 | BANDWHEEL HUB (GROOVED) | £121.16 | In stock | ||
| 72 | G2064 | SPACER (SEE OPTIONS) | In stock | |||
| 73 | G2347 | JACKING SCREW for SM284 (SEE OPTIONS) | In stock | |||
| 74 | 5114 | SPINDLE for SM284 tracking hub | £58.55 | In stock | ||
| 75 | 2473 | 14" BANDWHEEL FOR STARTRITE VERTICAL BANDSAWS | £180.29 | Available on back-order | ||
| 76 | BO5186 | GRUB SCREW | £1.62 | In stock | ||
| 77 | 5118 | CONTROL KNOB FOR SM284 TRACKING HUB | £44.48 | In stock | ||
| 78 | 2466 | BLADE TRACKING LABEL | £3.26 | In stock | ||
| 79 | BO5560 | HEX SCREW | £1.73 | In stock |
