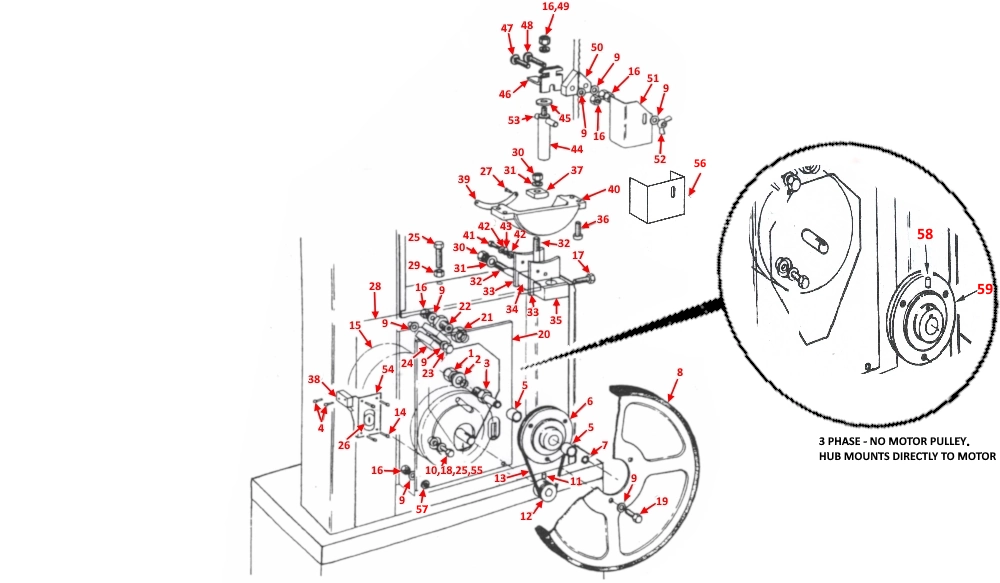

351S/351E & 352S - LOWER ASSEMBLY
Startrite 351S/352E & 352S Lower Assembly spares.
There is a variation on this machine for 3 phase bandsaws, pictured in the bubble on the right below. Parts 1-7 & 11-13 are NOT required for 3 phase machines – the bandwheel hub is mounted directly to the motor.
| Label | Product Code | NAME (CLICK FOR DETAILS) | Price - Exc VAT | Stock | Buy | |
|---|---|---|---|---|---|---|
| *03 - 07 | SM6700/1 | WHEEL HUB ASSEMBLY - STARTRITE 301(S), 351(S) & 352S | £144.59 | In stock | ||
| 01 | BO5777 | BINX NUT | £6.54 | In stock | ||
| 02 | BO5922 | WASHER | £0.95 | In stock | ||
| 03 | 10162 | BANDWHEEL SPINDLE 301E - 352S FOR BALL BEARINGS TYPE HUB | £40.70 | In stock | ||
| 04 | BO5473 | CHEESE HEAD SLOTTED SCREW | £1.52 | In stock | ||
| 05 | BO2047 | HUB BEARING | £8.91 | In stock | ||
| 06 | 10204 | BANDWHEEL PULLEY | £157.02 | In stock | ||
| 07 | BO6003 | EXTERNAL CIRCLIP | £2.04 | In stock | ||
| 08 | 2473 | 14" BANDWHEEL FOR STARTRITE VERTICAL BANDSAWS | £180.29 | Available on back-order | ||
| 09 | BO5917 | WASHER | £1.05 | In stock | ||
| 10 | BO5931 | STAR LOCK WASHER | £1.20 | In stock | ||
| 11 | GBO5186 | GRUB SCREW (SEE OPTIONS) | In stock | |||
| 12 | 10352 | MOTOR PULLEY 351S & 352S | £66.36 | In stock | ||
| 13 | GBO2139 | 351S, 351E & 352S DRIVE BELT | In stock | |||
| 14 | BO5476 | CHEESE HEAD SLOTTED SCREW | £1.81 | In stock | ||
| 15 | MOTOR | MOTOR (CONTACT US) | ||||
| 16 | BO5715 | FULL NUT | £1.81 | In stock | ||
| 17 | BO5564 | HEX SCREW | £2.04 | In stock | ||
| 18 | BO5919 | WASHER | £1.15 | In stock | ||
| 19 | BO5560 | HEX SCREW | £1.73 | In stock | ||
| 20 | G10214 | MOTOR PLATFORM (SEE OPTIONS) | In stock | |||
| 21 | BO5764 | LOCKNUT | £0.72 | In stock | ||
| 22 | 7824 | JACKING BOLT | £14.10 | Only 1 left in stock | ||
| 23 | BO5568 | HEX SCREW | £1.81 | In stock | ||
| 24 | 2270 | BANDWHEEL WIRE BRUSH | £22.81 | In stock | ||
| 25 | BO5574 | HEX SCREW | £1.79 | In stock | ||
| 26 | GBO2562 | DOOR LOCK & KEYS (2) | ||||
| 27 | BO5871 | HAMMER DRIVE SCREW | £2.09 | In stock | ||
| 28 | SM2852 | LOWER DOOR | ||||
| 29 | BO5753 | HALF NUT | £1.43 | In stock | ||
| 30 | BO5717 | FULL NUT | £2.81 | In stock | ||
| 31 | BO5921 | WASHER | £1.51 | In stock | ||
| 32 | BO5841 | STUD | £15.56 | |||
| 33 | 4884 | TILT PLATE | £26.09 | In stock | ||
| 34 | 4885 | SPACER | ||||
| 35 | 4890 | BOTTOM GUIDE HOLDER | £100.27 | Only 1 left in stock | ||
| 36 | BO5075 | CAP SCREW | £1.80 | In stock | ||
| 37 | 4911 | TABLE CLAMP | £41.39 | In stock | ||
| 38 | BO1595 | MICROSWITCH | £19.57 | In stock | ||
| 39 | 4921 | PROTRACTOR PLATE. | £29.76 | |||
| 40 | 4838 | TABLE BRACKET | £152.19 | In stock | ||
| 41 | BO5552 | HEX HEAD SCREW | £1.91 | In stock | ||
| 42 | BO5915 | WASHER | £0.91 | In stock | ||
| 43 | 2812 | POINTER | £10.20 | In stock | ||
| 44 | 4888 | BOTTOM GUIDE POST | £48.09 | In stock | ||
| 45 | BO5923 | WASHER | £1.87 | In stock | ||
| 46 | GSM829 | GUIDE BRACKET (SEE OPTIONS) | In stock | |||
| 47 | BO5621 | COACH BOLT | £1.90 | In stock | ||
| 48 | BO5622 | COACH BOLT | £1.81 | In stock | ||
| 49 | 4919 | WASHER | £9.61 | In stock | ||
| 50 | G4891 | STARTRITE BLADE GUIDES - 301(S), 351(S) & 352(S) | In stock | |||
| 51 | 6748 | LOWER GUARD | £65.15 | In stock | ||
| 52 | BO5785 | WING NUT | £1.87 | In stock | ||
| 53 | SM585/B | LOWER THRUST ROD 301 - 352S MODEL (SHORT) | £40.70 | In stock | ||
| 54 | 10256 | MICROSWITCH MOUNTING BRACKET | £31.78 | In stock | ||
| 55 | BO5716 | HEX NUT | £1.87 | In stock | ||
| 56 | 10507 | OUTER LOWER GUARD | £63.46 | In stock | ||
| 57 | 7826 | SPACER | ||||
| 58 | BO5195 | GRUB SCREW | £1.72 | In stock | ||
| 59 | G6743 | 301 - 351 LOWER BANDWHEEL HUB (SEE OPTIONS) | In stock |
