CONTROL BOX & VALVE - 316

Startrite 316 Control Box & Valve spare parts. This assembly is used to control the hydraulic sliding table. For more 316 Table & Hydraulic Parts, Click Here.

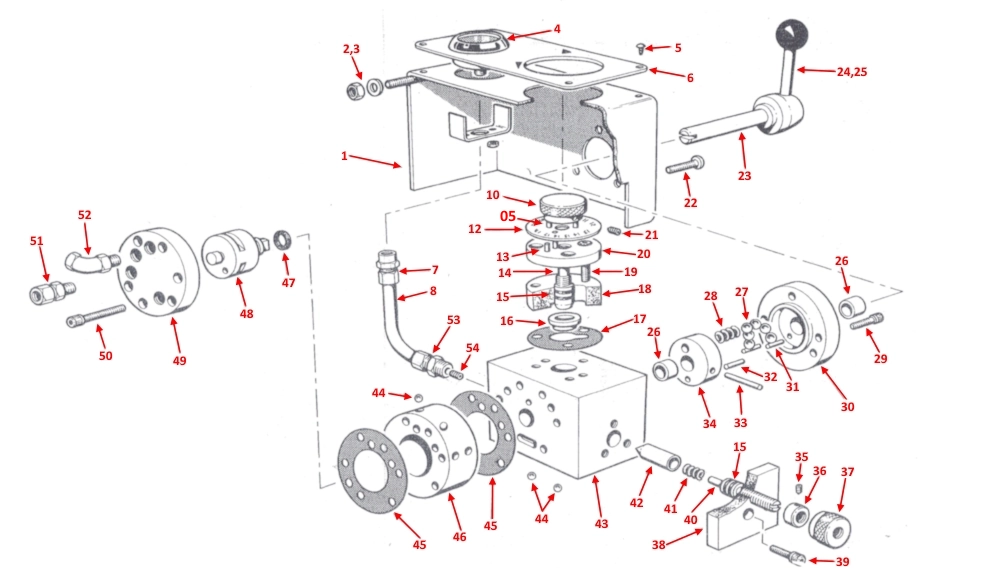

Startrite 316 Control Box & Valve numbered parts diagram
    LabelProduct CodeNAME (CLICK TITLE OR PRODUCT CODE FOR MORE INFO)PriceStockBuy
    *01-54SM473CONTROL BOX ASSEMBLY

    *10-54SM463CONTROL VALVE

    01SM472CONTROL BOX CASING

    02BO5703FULL NUT£2.84

    In stock

    03BO5917WASHER£0.86

    In stock

    04BO2454PRESSURE GAUGE 160 PSI PANEL MOUNTED£74.00

    In stock

    05BO5871HAMMER DRIVE SCREW£1.72

    In stock

    063548INSTRUCTION PLATE

    07BO2413FEMALE STUD COUPLING

    08BO6382NYLON TUBE 3/16 O/DIA x 24 INCHES£2.80

    In stock

    103203CONTROL KNOB

    123195FEED CONTROL DIAL£48.38

    In stock

    13BO5368SPRING LOCK PIN

    143533VALVE SPINDLE£75.00

    In stock

    15BO2262O RING£0.59

    In stock

    163534VALVE INSERT

    173536GASKET£5.00

    In stock

    183527VALVE HOUSING£75.00

    In stock

    19BO5012CAP SCREW£1.78

    In stock

    203528TOP CAP£30.10

    In stock

    21BO5155GRUB SCREW£1.49

    In stock

    22BO5450GRUB SCREW

    233529CONTROL SPINDLE

    242917FEED HANDLE£16.83

    In stock

    25BO2539KNOB£11.23

    In stock

    26BO2304BUSH£4.57

    In stock

    27BO2101STEEL BALL£1.50

    28BO2200SPRING£1.17

    In stock

    29BO5008CAP SCREW£1.50

    In stock

    303523FRONT CAP

    31BO5369SEL LOCK£0.74

    In stock

    32BO5332MILLS PIN£1.56

    In stock

    33BO5375SEL LOC£3.08

    In stock

    343530COLLAR

    35BO5159GRUB SCREW

    363606LOCKING COLLAR

    373607THUMB NUT

    38BO5002CAP SCREW£1.47

    In stock

    393704REGULATOR BLOCK

    403532REGULATOR SPINDLE

    41BO2197SPRING£6.36

    In stock

    423535REGULATOR PISTON

    433522VALVE BODY

    44BO2100STEEL BALL£1.74

    In stock

    453367GASKET£5.00

    In stock

    463524SPOOL HOUSING

    47BO2264O RING£1.25

    In stock

    483526SPOOL

    493525REAR CAP

    50BO5014CAP SCREW

    51BO2412MALE STUD COUPLING£13.49

    In stock

    52BO2423MALE ELBOW£18.84

    In stock

    53BO2414MALE STUD£2.75

    In stock

    54BO5163GRUB SCREW£1.21

    In stock
