SPEED CONTROL PANEL - 316

Startrite 316 Speed Control Panel Spare Parts. More Startrite 316 Spares are Available Here.

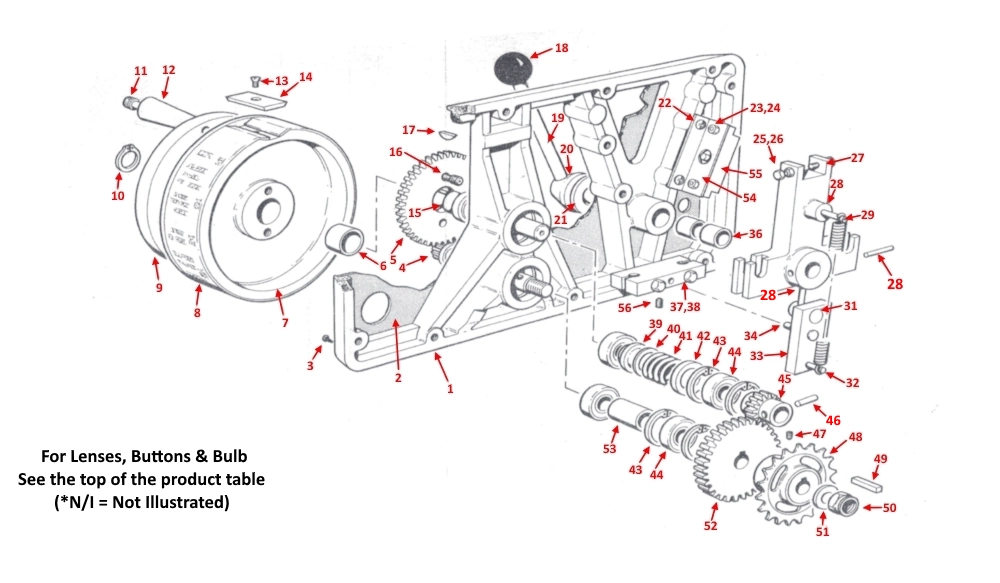

Spare parts diagram for the Startrite 316 Speed Control Panel
    LabelProduct CodeNAME (CLICK TITLE OR PRODUCT CODE FOR MORE INFO)PriceStockBuy
    *N/IBO1359GREEN START PUSH BUTTON£82.69

    In stock

    *N/IBO1356BLACK PUSH BUTTON£85.00

    In stock

    *N/IBO1360RED STOP PUSH BUTTON (30mm DIAMETER)£82.69

    Only 1 left in stock

    *N/IBO1422AMBER LENS & BODY£35.00

    Only 1 left in stock

    *N/IBO1423RED LENS & BODY£35.00

    Only 1 left in stock

    *N/IBULB24VBULB 24V£1.00

    In stock

    *N/IBO1341TOGGLE SWITCH£13.49

    In stock

    012885CONTROL PANEL BODY

    02G2894INDICATOR PLATE (SEE OPTIONS)

    In stock

    03BO5871HAMMER DRIVE SCREW£1.72

    In stock

    042890LAYSHAFT

    052678112 TOOTH GEAR£66.14

    In stock

    06BO2308BUSH£5.49

    In stock

    072677INDICATOR DRUM

    08G2757CALIBRATED STRIP (SEE OPTIONS)

    In stock

    092674CONTROL WHEEL£224.86

    In stock

    10BO6006EXTERNAL CIRCLIP£1.68

    In stock

    11S009SHOULDER SCREW

    12S010HANDLE

    13BO5250SOCKET HEAD COUNTERSUNK SCREW£1.71

    In stock

    143295LOCKING WEDGE£26.40

    In stock

    152889SHAFT£89.54

    In stock

    16BO5006CAP SCREW£1.84

    In stock

    17BO6460KEY (WOODRUFF)£6.21

    In stock

    18S011KNOB

    19885FEED HANDLE£12.74

    In stock

    202891SPEED CHANGE SHAFT

    22BO5401POZI PAN M/C SCREW£1.40

    In stock

    23BO5407 PHILLIPS ROUND HD SCREW

    25BO5502HEX SCREW£2.35

    In stock

    272886OPERATING ARM FOR SPEED CHANGE

    28BO5333MILLS PIN£3.40

    In stock

    29BO2192TENSION SPRING£1.36

    In stock

    314189ACTUATOR LINK PIN

    32BO5331MILLS PIN£1.45

    In stock

    334188SPRING ACTUATOR

    345580PIVOT PIN

    36BO2305BUSH£5.70

    In stock

    372893CABLE CONNECTING PLATE

    38BO5514HEAD HEAD SCREW£1.69

    393225SPACER£77.06

    In stock

    403226THRUST WASHER ( SMALL )£17.39

    In stock

    41BO2214SPRING

    423227LARGE THRUST WASHER

    43BO6034INTERNAL CIRCLIP£1.07

    In stock

    44N7216BEARING - N7126£23.96

    In stock

    45267521 TOOTH PINION£0.00

    47BO5151GRUB SCREW£1.54

    In stock

    48SM341SPROCKET ASSEMBLY£55.48

    Only 1 left in stock

    491149KEY£5.67

    In stock

    50BO5767SIMMONDS NUT

    51BO5921WASHER£1.24

    In stock

    52288763 TOOTH GEAR

    532672SPACER

    542895LIMIT SWITCH BRACKET£9.00

    In stock

    55S012MICRO SWITCH

    56BO5185GRUB SCREW£1.49

    In stock
