GEARBOX OUTPUT - 316

Startrite 316 Gearbox Output Spares. Click here to view the gearbox input spares.

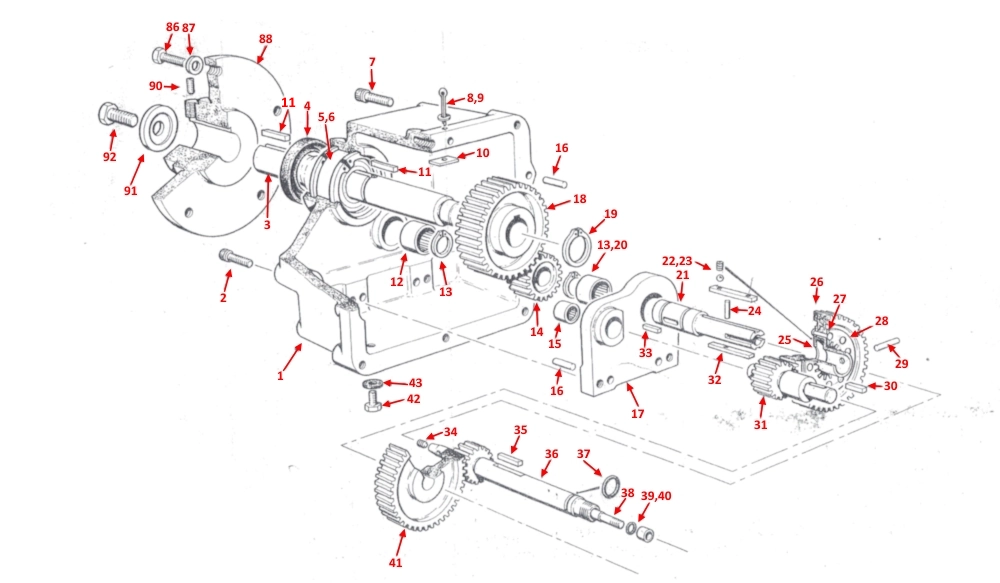

STARTRITE 316 GEARBOX OUTPUT SPARE PARTS DIAGRAM
    LabelProduct CodeNAME (CLICK TITLE OR PRODUCT CODE FOR MORE INFO)PriceStockBuy
    *25-28SM2066GEAR KIT - ASSEMBLED£597.45

    In stock

    012651GEARBOX HOUSING - 316

    02BO5026CAP SCREW£2.48

    In stock

    032944OUTPUT SHAFT£430.82

    In stock

    04BOS1132OIL SEAL£19.63

    In stock

    05BOS1145BEARING£29.45

    In stock

    06BO6042INTERNAL CIRCLIP£1.68

    In stock

    07BO5036SOCKET CAP SCREW£2.35

    In stock

    082657WASHER£18.00

    In stock

    09BO5812SPLIT PIN£0.75

    In stock

    102799BAFFLE PLATE£4.57

    In stock

    112659KEY£11.87

    In stock

    12BO2072NEEDLE RACE£37.28

    In stock

    13BO6009EXTERNAL CIRCLIP£1.68

    In stock

    142653FINAL DRIVE PINION 21 TOOTH£271.39

    In stock

    15BO2069NEEDLE RACE£25.03

    In stock

    16BO5881DOWEL PIN£4.97

    In stock

    172660BRIDGE£0.00

    182654DRIVE GEAR 50 TOOTH£233.67

    In stock

    19CIRCLIP1400-7/8CIRCLIP 1400 - 7/8£2.92

    20BO2063NEEDLE RACE£16.18

    In stock

    212656INTERMEDIATE SHAFT£268.57

    In stock

    22BO2100STEEL BALL£1.74

    In stock

    23BO2197SPRING£6.36

    In stock

    24BO5332MILLS PIN£1.56

    In stock

    251036LINER£102.08

    In stock

    261044INTERMEDIATE GEAR£194.38

    In stock

    27BO5799RIVET£1.57

    In stock

    281035CLUTCH PLATE£169.53

    In stock

    291024PIN£5.28

    In stock

    301147KEY£1.65

    In stock

    313253LAYSHAFT 19 TEETH£359.19

    In stock

    321027/BKEY (V500/V900/316)£18.97

    In stock

    332658KEY£2.43

    In stock

    34BO5151GRUB SCREW£1.54

    In stock

    351148KEY£4.03

    In stock

    362670INPUT SHAFT£305.93

    In stock

    37BO2279O RING£2.84

    In stock

    382683CONTROL ROD£100.75

    In stock

    39BO2261O RING£1.38

    In stock

    40BO2311BUSH£4.54

    In stock

    413252GEAR 60 TEETH£240.51

    In stock

    42BO5506HEX SCREW£1.47

    In stock

    43BO5954FIBRE WASHER£2.93

    In stock

    442723GASKET£12.14

    In stock

    45BO5019CAP SCREW£2.88

    In stock

    462664GEARBOX COVER FOR V500/V900£365.95

    472766OIL LEVEL PLUG£7.50

    In stock

    482767FIBRE WASHER£4.03

    In stock

    49BOS1151BEARING****8m/m wide****£17.68

    In stock

    50BO6037INTERNAL CIRCLIP£1.56

    In stock

    86BO5534HEX SCREW£1.82

    In stock

    87BO5917WASHER£0.86

    In stock

    882943BANDWHEEL HUB 216/316£209.98

    916541SPECIAL WASHER£11.55

    In stock

    92BO5535HEX SCREW£2.35

    In stock

    N/I791116" BANDWHEEL FOR STARTRITE VERTICAL BANDSAWS£291.05

    In stock
