TENSION BANDWHEEL, TENSIONING & TRACKING - HB Series

Spare parts, including complete wheels, for the Startrite HB series Tension Bandwheel, Tensioning & Tracking Assembly. The drive end bandwheel is different to the tension end bandwheel, For Startrite HB series Drive end bandwheel spares click here

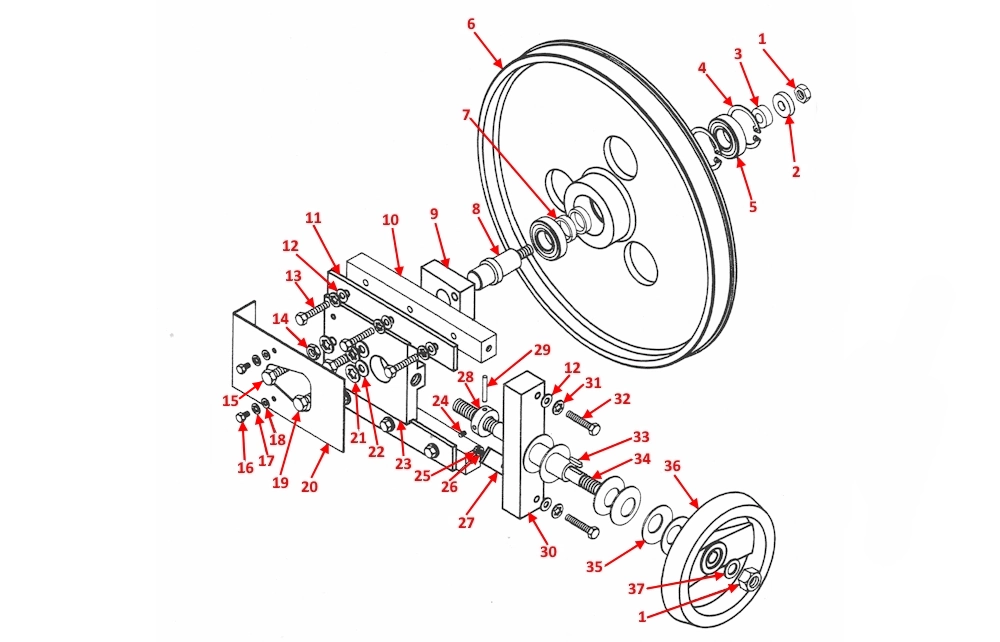

Startrite HB Tensioning and tracking numbered parts diagram
    LabelProduct CodeNAME (CLICK FOR DETAILS)Price - Exc VATStockBuy
    01BO5776BINX NUT£3.08

    In stock

    026048WASHER£8.11

    In stock

    035993SLEEVE£10.25

    In stock

    04BO6041INTERNAL CIRCLIP£4.05

    In stock

    05BO2006BEARING£26.06

    In stock

    06GSM1234TENSION BANDWHEEL H/HB 250-330 (SEE OPTIONS)

    In stock

    076047SPACER£10.77

    In stock

    085985SPIGOT£59.11

    In stock

    095984TRACKING BLOCK£80.77

    In stock

    109822GUIDE BLOCK£45.72

    In stock

    115986GUIDE GIB£24.25

    In stock

    12BO5017CAP SCREW£1.65

    In stock

    13BO5566HEX SCREW£1.80

    In stock

    14BO5754HALF LOCKNUT£1.47

    In stock

    15BO5574HEX SCREW£1.47

    In stock

    16BO5554HEX SCREW£0.27

    In stock

    17BO5943COUNTERSUNK LOCKING WASHER£0.93

    In stock

    18BO5915WASHER£0.74

    In stock

    19BO5575HEX. SCREW£1.60

    In stock

    208388GUARD TENSION PLATE£18.84

    In stock

    21BO5945SHAKEPROOF WASHER£0.74

    In stock

    22BO5919WASHER£0.94

    In stock

    235979TENSION GUIDE PLATE£198.73

    In stock

    24BO5186GRUB SCREW£1.33

    In stock

    25BO5061CAP SCREW£1.09

    In stock

    26BO5913WASHER£0.55

    In stock

    276098TENSION GAUGE£9.60

    In stock

    285990COLLAR£20.72

    In stock

    29BO5358SPRING DOWEL£1.68

    In stock

    305988SPINDLE PLATE£70.22

    In stock

    31BO5944WASHER SHAKEPROOF£0.82

    In stock

    32BO5567HEX BOLT£1.54

    In stock

    331148KEY£4.03

    In stock

    345989/AT/SPINDLE£112.57

    In stock

    35BO2243DISC SPRING£2.75

    In stock

    3697682 SPOKE H/WHEEL£39.00

    In stock

    37BO5922WASHER£0.78

    In stock
