HYDRAULIC CYLINDER (MANUAL ONLY) - HB Series

This hydraulic cylinder listing is for Manual Startrite HB horizontal bandsaw models only. For the Automatic version of this hydraulic cylinder click here.

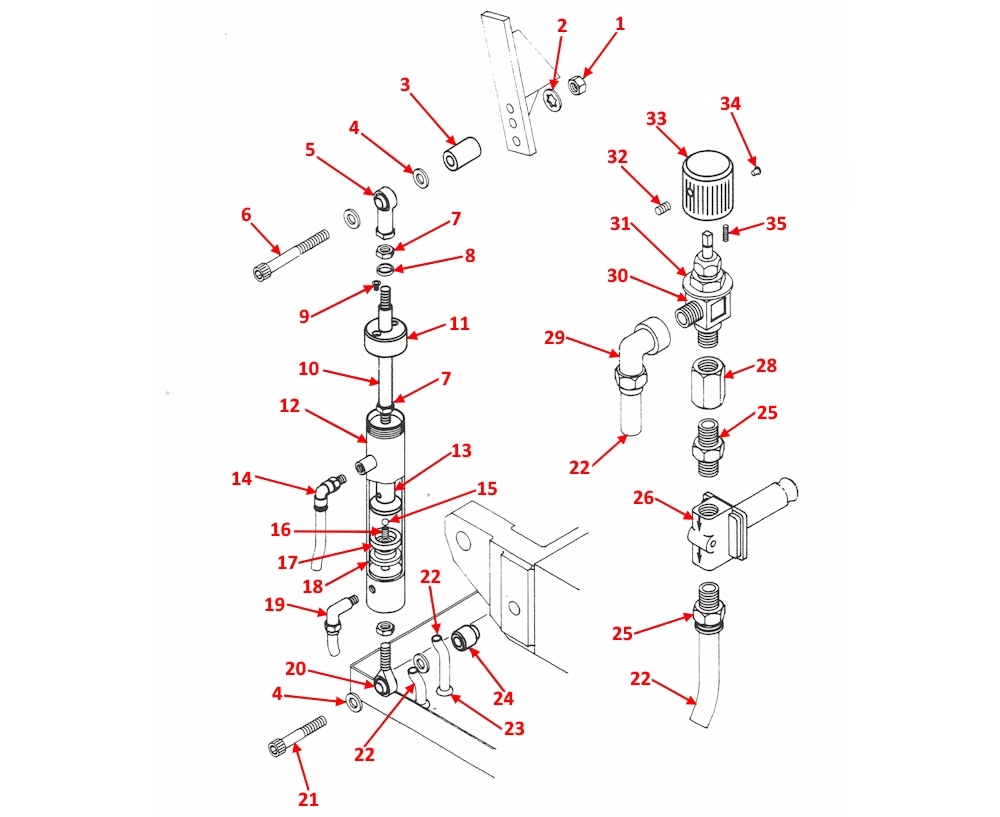

exploded parts diagram for a Startrite HB Hydraulic cylinder (manual saws)
    LabelProduct CodeNAME (CLICK FOR DETAILS)Price - Exc VATStockBuy
    *SM2031HYDRAULIC CYLINDER REPAIR KIT£40.07

    In stock

    01BO5717FULL NUT£2.31

    In stock

    02BO5946SHAKEPROOF WASHER£1.33

    In stock

    03G9433HB CYLINDER UPPER SPACER (SEE OPTIONS)

    In stock

    04BO5921WASHER£1.24

    In stock

    05BO2037ROD END£24.70

    In stock

    06GBO5097HB CYLINDER UPPER SCREW (SEE OPTIONS)

    In stock

    07BO5755HALF HEX LOCKNUT£1.63

    In stock

    08BO2279O RING£2.84

    In stock

    09BO5264SOCKET CSK SCREW£1.14

    In stock

    106024PISTON ROD£34.95

    In stock

    115980CYLINDER CAP£89.54

    In stock

    12SM1206CYLINDER WELDED ASSEMBLY£211.18

    In stock

    136287PISTON£45.39

    In stock

    14BO2496QUICK RELEASE ELBOW£21.04

    In stock

    15BO2103STEEL BALL£2.94

    In stock

    165826COMPRESSION SPRING£4.13

    In stock

    17BO2274U RING£26.93

    In stock

    186288PISTON NUT£89.09

    In stock

    19BO2421STUD ELBOW£23.17

    In stock

    20BO2036ROD END£34.95

    In stock

    21BO5097CAP SCREW£2.15

    In stock

    22BO6384NYLON TUBE (HYDRAULIC) per metre 5/16£6.69

    In stock

    23BO6308GROMMET

    249384CYLINDER SPACER (H330)£23.26

    In stock

    25/27BO2412MALE STUD COUPLING£13.49

    In stock

    26BO1213VALVE BODY ONLY (DANFOSS)£112.82

    In stock

    285564FEMALE ADAPTOR£15.16

    In stock

    29BO2418FEMALE ELBOW£24.24

    In stock

    30BO2466CONTROL VALVE - WADE WVA3/B/16 COMPATIBLE£88.45

    In stock

    31BO5922WASHER£0.78

    In stock

    32BO5186GRUB SCREW£1.33

    In stock

    339581CONTROL KNOB£34.23

    In stock

    34BO5870DRIVE SCREW£1.41

    In stock

    35BO5220GRUB SCREW£1.85

    In stock
