HEAD DOWN / UP LIMIT SWITCH (AUTO ONLY) - HB Series

The Head Down & Up Limit Switch for Startrite HB – Automatic Models. The Down limit switch stops the saw when it finishes a cut. The head up limit switch stops the saw when it is raising after a cut. You can adjust this position to reduce unnecessary travel, speeding up time between cuts.
For the head down limit switch found on MANUAL models of the Startrite HB Click Here.

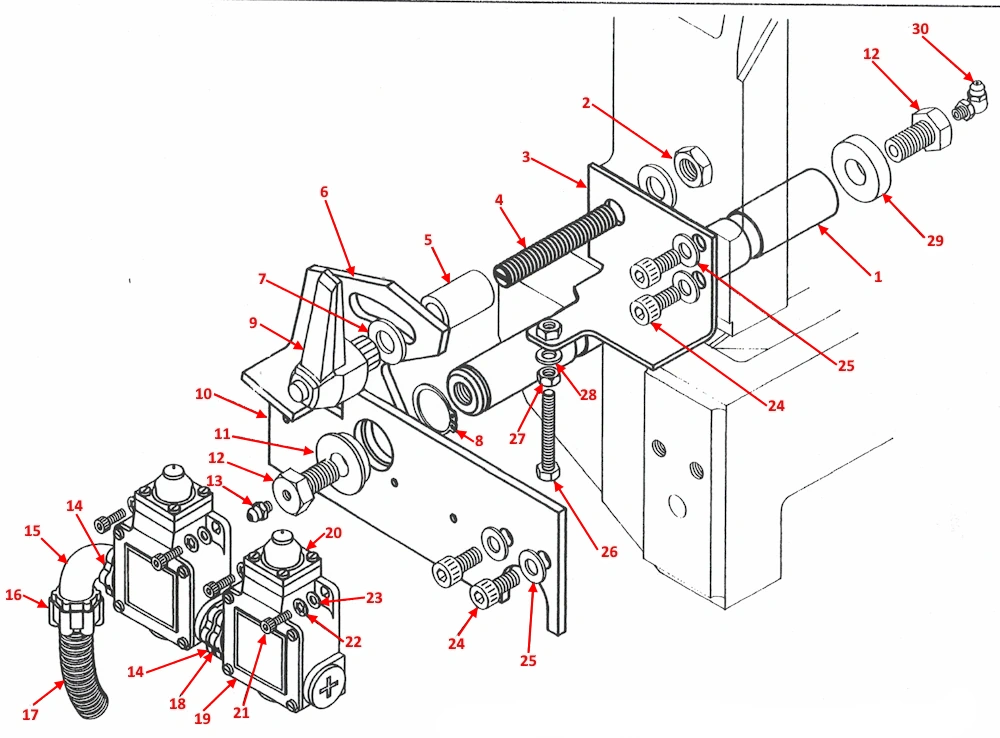

exploded diagram of Startrite HB Head down / Up limit Switch, auto and semi auto
    LabelProduct CodeNAME (CLICK FOR DETAILS)Price - Exc VATStockBuy
    015983PIVOT£80.01

    In stock

    02BO5755HALF HEX LOCKNUT£1.63

    In stock

    03SM2586HEAD DOWN BRACKET ASSSEMBLY£61.02

    In stock

    046359STUDDING£11.63

    In stock

    059583LOCKING SPACER£21.90

    In stock

    069586SWITCH ACTUATING PLATE£65.82

    In stock

    07BO5921WASHER£1.24

    In stock

    08BO6010EXTERNAL CIRCLIP£1.68

    In stock

    09BO2555ADJUSTABLE HANDLE£26.66

    In stock

    109584SWITCH MOUNTING PLATE

    119585BUSH£5.41

    In stock

    125998PIVOT SCREW£13.49

    In stock

    13BO2479GREASE NIPPLE£1.40

    In stock

    14BO5762PLASTIC LOCKRING£0.95

    In stock

    15BO6085ELBOW£3.50

    In stock

    16BO6052ADAPTOR£4.50

    In stock

    17BO6370CONDUIT

    18BO6060NIPPLE£0.50

    In stock

    19BO1154LIMIT SWITCH BODY£61.79

    In stock

    20BO1147LIMIT SWITCH PLUNGER£26.90

    In stock

    21BO5046CAP SCREW£0.90

    In stock

    22BO5941SHAKEPROOF WASHER£1.12

    In stock

    23BO5911WASHER£0.95

    In stock

    24BO5073CAP SCREW£1.68

    In stock

    25BO5917WASHER£0.86

    In stock

    26BO5559HEX SCREW£1.42

    In stock

    27BO5752LOCKNUT£0.59

    In stock

    28BO5915WASHER£0.74

    In stock

    296048WASHER£8.11

    In stock

    30BO2485GREASE NIPPLE 90 DEGREE£1.84

    In stock
