STARTRITE GEARBOX SM1255 / SM1256 - H225

WARNING – Some H225’s were fitted with an obsolete Lenze Gearbox. Click on the title or product code of the first item in the table to view this gearbox.

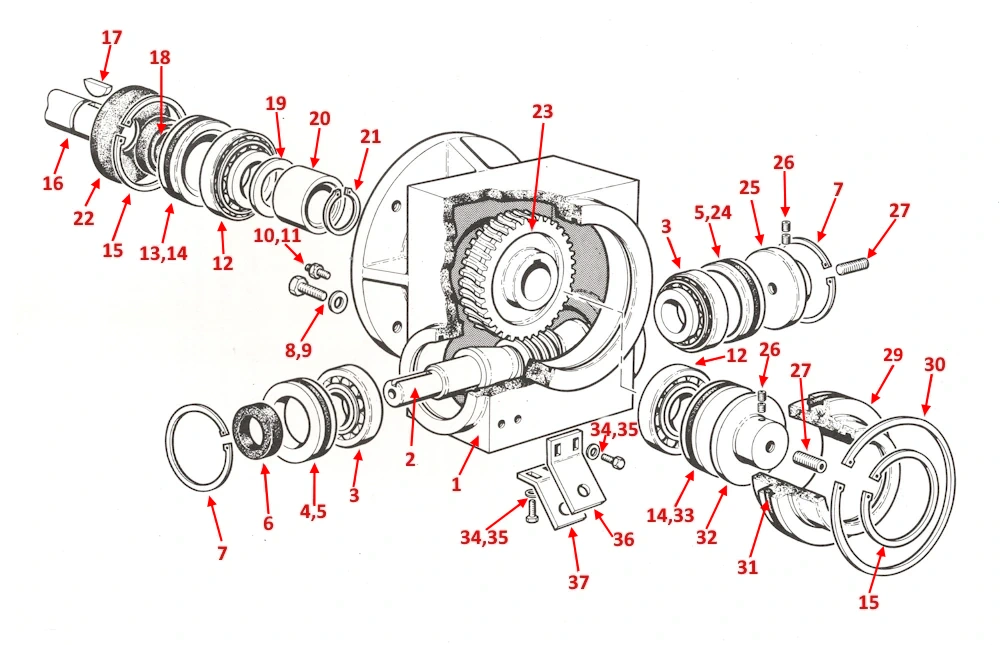

Spares listed in the table below are for the SM1255 & SM1256 Startrite Gearboxes. Most of the parts below are common to both.

Need help identifying your gearbox? Contact Us Today.

Label	Product Code	NAME (CLICK FOR DETAILS)	Price - Exc VAT	Stock	Buy
*	LENZE GEARBOX	OBSOLETE LENZE GEARBOX (CLICK HERE FOR IMAGE)		Contact Us	Read more
*	SM1256/A	H225 REPLACEMENT GEARBOX COMPLETE W COUNTER BALANCE PLATE	£1,439.23	Only 1 left in stock	H225 REPLACEMENT GEARBOX COMPLETE W COUNTER BALANCE PLATE quantity
*	BO6900	1Kg STARGEAR GEARBOX GREASE (H225-330 REQUIRES TWO Kg)	£51.47	In stock	1Kg STARGEAR GEARBOX GREASE (H225-330 REQUIRES TWO Kg) quantity
01	6300	GEARBOX HOUSING		Contact Us	Read more
02	G6303	STARTRITE 4/5 SPEED GEARBOX WORM SHAFT (SEE OPTIONS)		In stock	View products
03	G2039	STARTRITE 4/5 SPEED GEARBOX ITEM 3 BEARING (SEE OPTIONS)		In stock	View products
04	6308	SEAL PLATE	£44.05	In stock	SEAL PLATE quantity
05	BO2282	O RING	£1.79	In stock	O RING quantity
06	BO2132	OIL SEAL	£23.76	In stock	OIL SEAL quantity
07	BO6045	INTERNAL CIRCLIP	£3.50	In stock	INTERNAL CIRCLIP quantity
08	BO5573	HEX SCREW	£1.81	In stock	HEX SCREW quantity
09	BO5919	WASHER	£1.15	In stock	WASHER quantity
10	BO5212	GRUB SCREW	£1.91	In stock	GRUB SCREW quantity
11	BO5716	HEX NUT	£1.87	In stock	HEX NUT quantity
12	GBO2040	STARTRITE 4/5 SPEED GEARBOX BEARING (SEE OPTIONS)		In stock	View products
13	6310	SEAL PLATE	£68.92	In stock	SEAL PLATE quantity
14	BO2280	O RING	£1.79	In stock	O RING quantity
15	BO6046	INTERNAL CIRCLIP	£5.15	Contact Us	Read more
16	G6304	STARTRITE 4/5 SPEED GEARBOX DRIVE SHAFT (SEE OPTIONS)		In stock	View products
17	BO1210	WOODRUFF KEY	£12.86	In stock	WOODRUFF KEY quantity
18	BO2131	OIL SEAL	£22.81	In stock	OIL SEAL quantity
19	6312	SPACER	£16.97	Contact Us	Read more
20	G6311	STARTRITE 4/5 SPEED GEARBOX SPACER (SEE OPTIONS)		In stock	View products
21	BO6024	EXTERNAL CIRCLIP	£1.79	In stock	EXTERNAL CIRCLIP quantity
22	6762	SEALING WASHER	£6.56	In stock	SEALING WASHER quantity
23	G6302	STARTRITE 4/5 SPEED GEARBOX WORM WHEEL (SEE OPTIONS)		In stock	View products
24	6307	SEAL PLATE	£77.92	In stock	SEAL PLATE quantity
25	6305	STOP PLATE	£71.93	Contact Us	Read more
26	BO5194	GRUB SCREW	£1.15	In stock	GRUB SCREW quantity
27	7642	SET SCREW - SPECIAL	£3.70	Contact Us	Read more
29	6301	BEARING HOUSING		Contact Us	Read more
30	BO6048	INTERNAL CIRCLIP	£9.08	In stock	INTERNAL CIRCLIP quantity
31	BO2281	O RING	£3.21	Contact Us	Read more
32	6306	STOP PLATE		Contact Us	Read more
33	6309	SEAL PLATE	£64.23	In stock	SEAL PLATE quantity
34	BO5546	HEX SCREW	£1.60	In stock	HEX SCREW quantity
35	BO5913	WASHER	£0.68	In stock	WASHER quantity
36	6539	BRACKET LEFT HAND	£25.25	In stock	BRACKET LEFT HAND quantity
37	6540	BRACKET RIGHT HAND	£19.80	In stock	BRACKET RIGHT HAND quantity
