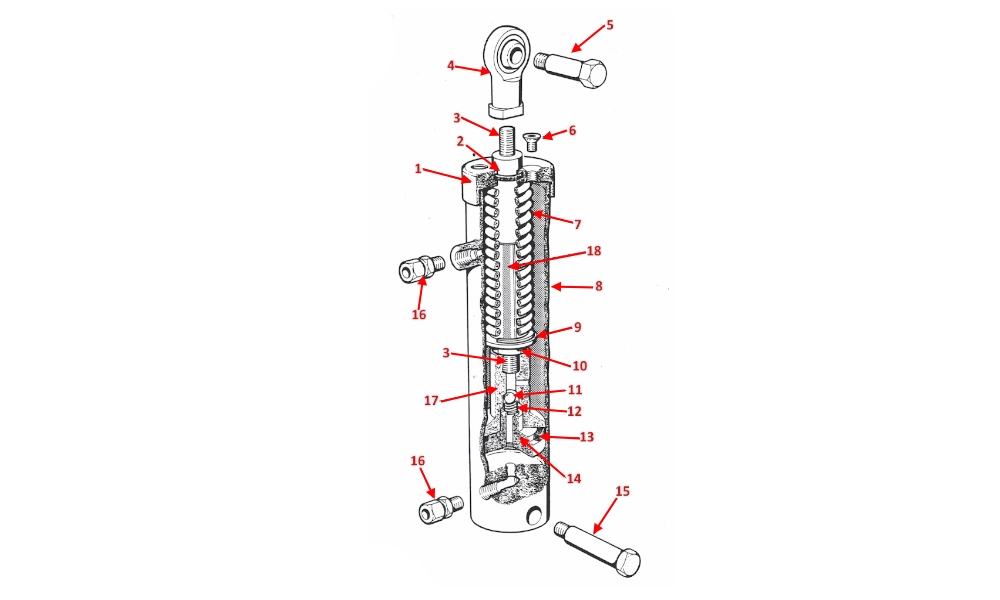

HYDRAULIC CYLINDER - H200
Startrite H200 Hydraulic Cylinder. For the Complete Cylinder, or the Cylinder Repair Kit, See the top of the product table.
For parts not illustrated, such as the control valve and hydraulic tube, see the parts marked “NI/” at the bottom of the product table.
| Label | Product Code | NAME (CLICK FOR DETAILS) | Price - Exc VAT | Stock | Buy | |
|---|---|---|---|---|---|---|
| * | SM2031 | HYDRAULIC CYLINDER SERVICE KIT (MANUAL SAWS) | £48.49 | In stock | ||
| * | SM1253/B | CYLINDER ASSEMBLY: H175/200W | £974.09 | In stock | ||
| 01 | 5980 | CYLINDER CAP | £108.35 | In stock | ||
| 02 | BO2279 | O RING | £3.45 | In stock | ||
| 03 | 6286/B | PISTON ROD | £58.57 | In stock | ||
| 04 | BO2037 | ROD END | £29.89 | In stock | ||
| 05 | 6292 | SHOULDER SCREW | £14.01 | In stock | ||
| 06 | BO5264 | SOCKET CSK SCREW | £1.39 | In stock | ||
| 07 | BO2219 | SPRING used on SM1253/B (H200W | £13.14 | In stock | ||
| 08 | SM1252 | CYLINDER BODY | £332.75 | In stock | ||
| 09 | 6025 | WASHER | £3.45 | In stock | ||
| 10 | BO5755 | HALF HEX LOCKNUT | £1.98 | In stock | ||
| 11 | BO2103 | STEEL BALL | £3.57 | In stock | ||
| 12 | 5826 | COMPRESSION SPRING | £5.01 | In stock | ||
| 13 | BO2274 | U RING | £32.60 | In stock | ||
| 14 | 6288 | PISTON NUT | £107.80 | In stock | ||
| 15 | 6293 | SHOULDER SCREW | £19.41 | In stock | ||
| 16 | BO2443 | MALE STUD COUPLING | £26.62 | In stock | ||
| 17 | 6287 | PISTON | £54.93 | In stock | ||
| 18 | 6322 | COLLAR | £8.07 | In stock | ||
| NI/1 | BO2466 | BRASS NEEDLE FLOW CONTROL VALVE - WADE WVA3/B/16 COMPATIBLE | £96.79 | In stock | ||
| NI/2 | BO5775 | BINX NUT | £2.77 | In stock | ||
| NI/3 | BO5919 | WASHER | £1.15 | In stock | ||
| NI/4 | BO2442 | STANDPIPE ELBOW | ||||
| NI/5 | 6321 | COVER PLATE | ||||
| NI/6 | BO6383 | 1/4" HYDRAULIC TUBE (PER METRE) | £3.39 | In stock |
