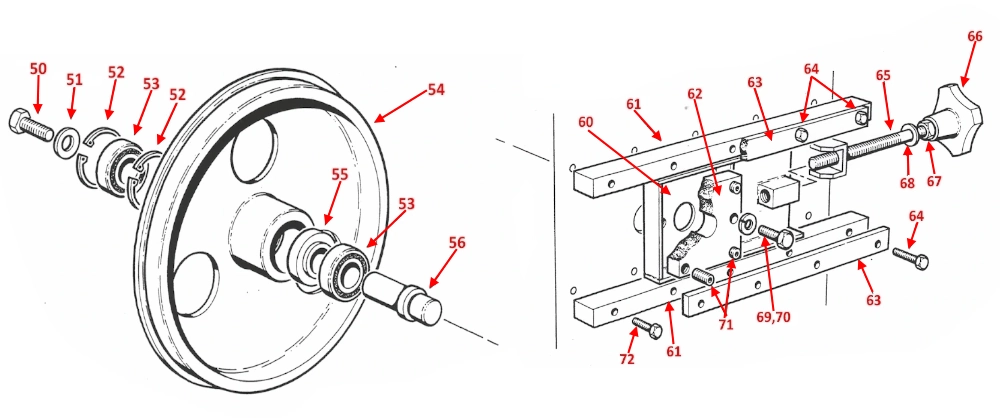

TENSION END BANDWHEEL, TENSIONING & TRACKING - H175
The Drive end bandwheel for the Startrite H175 is different to the tension end bandwheel found below. Click here to view the drive end bandwheel, which is part of the motor platform & drive assembly.
| Label | Product Code | NAME (CLICK FOR DETAILS) | Price - Exc VAT | Stock | Buy | |
|---|---|---|---|---|---|---|
| * | SM1264 | TENSION END BANDWHEEL ASSEMBLY | £209.14 | In stock | ||
| 50 | BO5573 | HEX SCREW | £1.81 | In stock | ||
| 51 | BO5920 | WASHER | £1.04 | In stock | ||
| 52 | BO6038 | INTERNAL CIRCLIP | £3.88 | In stock | ||
| 53 | BO2031 | BEARING | £13.11 | In stock | ||
| 54 | 6240/A | BANDWHEEL (TENSION) H175/200W | £330.63 | In stock | ||
| 55 | 4434 | SPACER | £16.37 | In stock | ||
| 56 | 6242 | BANDWHEEL SPIGOT | £83.13 | In stock | ||
| 60 | SM1257 | TRACKING PLATE | ||||
| 61 | 6251/B | TRACKING PLATE GUIDE | £64.26 | In stock | ||
| 62 | 6243 | TRACKING BLOCK | £112.53 | In stock | ||
| 63 | 6254 | TRACKING PLATE RETAINER | £32.73 | In stock | ||
| 64 | BO5550 | HEX SCREW | £1.96 | In stock | ||
| 65 | 6245 | TENSIONING SCREW | £0.00 | In stock | ||
| 66 | BO2548 | HANDKNOB | £29.70 | In stock | ||
| 67 | BO5755 | HALF HEX LOCKNUT | £1.98 | In stock | ||
| 68 | BO5921 | WASHER | £1.51 | In stock | ||
| 69 | BO5563 | HEXAGON HEAD SCREW | £1.81 | In stock | ||
| 70 | BO5944 | WASHER SHAKEPROOF | £1.01 | In stock | ||
| 71 | BO5203 | SOCKET SET SCREW | £1.81 | In stock | ||
| 72 | BO5549 | HEX SCREW | £1.70 | In stock |
