GENERAL ASSEMBLY & PULLLEY

For other Startrite Mercury 10 parts, such as the quill and guard click here.

FOR THE CHUCK & ARBOUR ADAPTOR, SEE THE TOP OF THE PRODUCT TABLE.

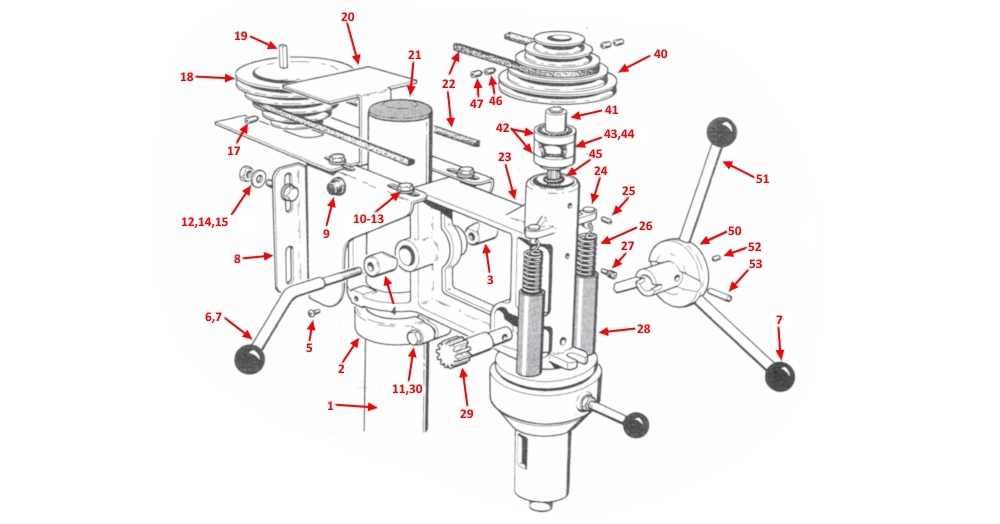

Startrite Mercury 10 General Assembly Diagram
    LabelProduct CodeNAME (CLICK FOR DETAILS)Price - Exc VATStockBuy
    *S045CHUCKKEYED CHUCK for STARTRITE MERCURY 10 DRILL - 1-13mm£55.46

    In stock

    *S0570071CHUCK ARBOUR for MERCURY 10 SPEED CHUCK£36.90

    01G721DRILL COLUMN

    In stock

    02969LOCKING COLLAR£78.10

    In stock

    03947COLUMN LOCK TAPPED£24.04

    In stock

    04948COLUMN LOCK PLAIN£19.63

    In stock

    05BO5400POZI HEAD SCREW£1.50

    In stock

    06968CLAMPING HANDLE£25.19

    In stock

    07BO2541BALL KNOB (MERCURY DRILL)£7.74

    In stock

    08G962MOTOR BRACKET R.H. or L.H. (SEE OPTIONS)

    In stock

    091850BUFFER STOP£8.72

    In stock

    10BO5516HEX SCREW£2.77

    In stock

    11BO5703FULL NUT£2.84

    In stock

    12BO5917WASHER£0.86

    In stock

    13BO5953FIBRE WASHER£2.84

    In stock

    14BO5563HEXAGON HEAD SCREW£1.49

    In stock

    15BO5715FULL NUT£1.49

    In stock

    17GBO5155GRUB SCREW (SEE OPTIONS)

    In stock

    18G2239STARTRITE MERCURY MOTOR PULLEY (SEE OPTIONS)

    In stock

    19KEYKEY (CONTACT US)

    205211/APULLEY GUARD£73.63

    In stock

    211208COLUMN CAP (USED)£8.19

    22GBO2152DRIVE BELT (5 & 10 SPEED, GET IN TOUCH FOR 4 & 8 SPEED BELT)

    In stock

    23950DRILL HEAD

    241011SPRING ATTACHMENT£14.02

    In stock

    25BO5155GRUB SCREW£1.49

    In stock

    262109SPRING£15.64

    In stock

    27BO5008CAP SCREW£1.50

    In stock

    28983SPRING COVER£11.23

    In stock

    29971PINION SHAFT£102.09

    In stock

    30BO5523HEX HEAD SCREW£1.65

    40G9535 STEP OR 4 STEP PULLEY

    In stock

    412245SPLINED BUSH (MERCURY DRILL)£104.95

    In stock

    42BO2008BEARING£14.01

    In stock

    432243OUTER SPACER£16.83

    In stock

    442244INNER SPACER£11.23

    In stock

    45BO2265O RING£2.68

    In stock

    46GBO5151-2GRUB SCREW (SEE OPTIONS)

    In stock

    47GBO5151GRUB SCREW (SEE OPTIONS)

    In stock

    501715HUB£114.73

    In stock

    51885FEED HANDLE£12.74

    In stock

    52BO5163GRUB SCREW£1.21

    In stock

    53BO5357SPRING LOCK DOWEL£3.08

    In stock

    N/IBO2598-KEYCHUCK KEY ONLY for JACOBS CHUCK (STARTRITE MERCURY)£16.40

    In stock
