CF350
Spare parts for the Startrite CF350 Cut Off Saw. This listing covers the Startrite CF350, SC350, C350 & CS14 saws, which are all variants of the same cut off saw.
-

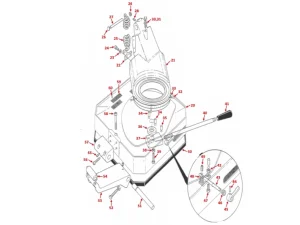

MACHINE BASE & SWIVELLING PEDESTAL (40)
-

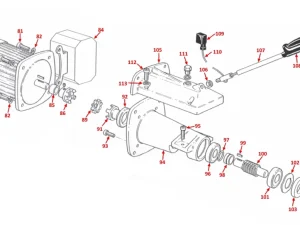

SAW HEAD - UPPER ASSEMBLY (30)
-

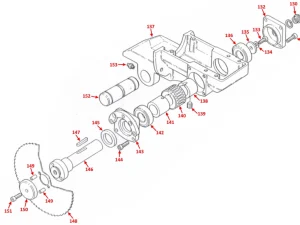

SAW HEAD - LOWER ASSEMBLY (24)
-

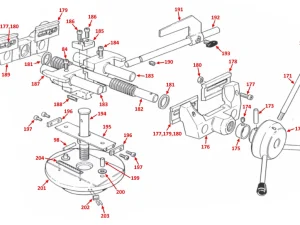

MANUAL VICE (35)
-

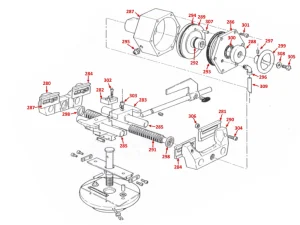

PNEUMATIC VICE (ADDITIONAL PARTS) (30)
-

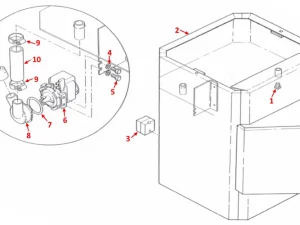

COOLANT PUMP & MACHINE STAND (11)
-

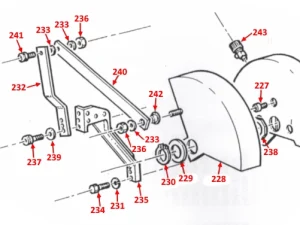

BLADE GUARD (19)
Startrite CF350 & SC350Specifications |
|
|---|---|
| 3 PHASE DRIVE MOTOR | 1.7 / 2.2 kW 2.2 / 3.0 hp |
| Spindle Speed Low | 26 rev/min |
| Spindle Speed High | 52 rev/min |
| Max. Blade Diameter | 350mm |
| Center Bore | 32mm |
| Locating Pins | 2 off |
| Diameter | 10.5mm |
| Center Distance | 63mm |
| Max. Vice Opening | 155mm |
| Total Height | 1740mm |
| Total Width | 610mm |
| Total Length | 790mm |
| Gross Weight | 300KG |
| Coolant Tank Capacity | 1.0L |
